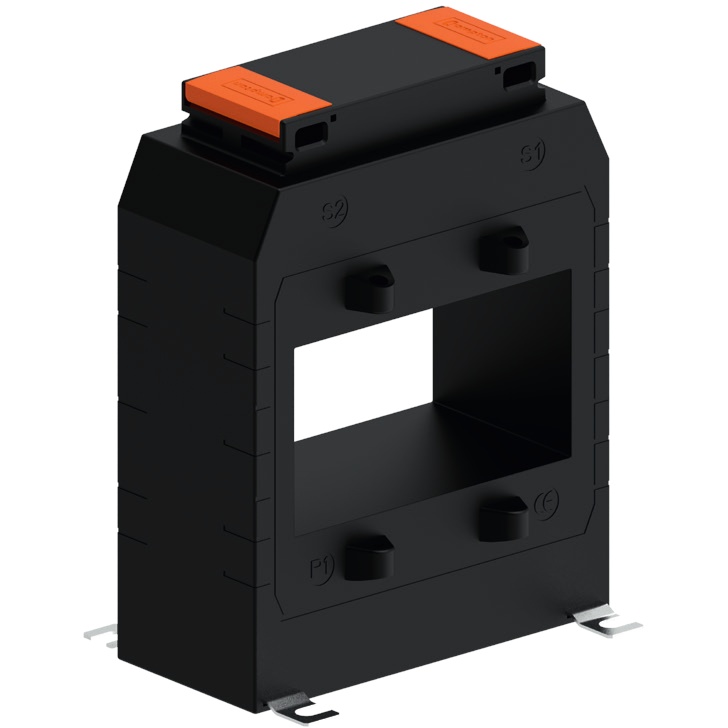

Model XL7C 4000:1 Ratio CT, Ebony Excel series, Crompton

132.61 132.61 USD 132.61


  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Window

This combination does not exist.


TE's Crompton Instruments Ebony Excel range of Current Transformers offers wide system current ratings, apertures, busbar and case sizes to suit every application.  Manufactured to meet IEC61869-2, the range benefits include ratio rating from 1/5 to 6000/5, a comprehensive range of class accuracies, hinged wire sealable, terminal covers for safety and multiple mounting options.


The toroidal core and secondary winding is encapsulated with UL94V-0 approved polycarbonate, in moulded case providing excellent mechanical strength and electrical insulation.


• Plug-in metal feet for wall or base mounting
• Moulded busbar mounting
• Primary copper busbar mounting


• CT ratios from 600A to 3000A with 5A and 1A secondary's
• Comprehensive range of class accuracy's
• Cost effective moulded case
• Wide range of system current ratings, busbar sizes, case dimensions and apertures
• Wall, cable, and busbar mounting
• Hinged terminal covers


• Wide range of apertures
• Reduction of high currents for ease of metering
• Long product life


• IEC 61869-2
• BS3938
• Multi busbar mounting for two busbars

Applicable Standards: IEC 61869-2, BS3839
Construction: 10% glass filled polycarbonate.  Flame retardant grades classified UL94V-0
Connection: Two connections each side. M4 screws with self lifting clamp assembly
Insulation Class: E (120°C Maximum)
System Voltage: 720V maximum
Test Voltage: 4KV 50Hz for 1 min (Except for XL2 model where test voltage is 3KV 50Hz for 1 min)
Operating Frequency: 50Hz or 60Hz
Rated Secondary Output: 5A standard
Rated Burden: 5, 10, 15 VA (depending on rated primary and secondary current)
Class of Accuracy: 0.5, 1, 3
Optional Class: 0.2, 0.2S & 0.5S
Ambient Temperature: -20°C…+45°C
Storage Temperature: -50°C…+80°C
Thermal Short Circuit Current (lth): 60 x In
Dynamic Short Circuit Current (ldyn): 2.5 x lth
Instrument Security Factor: 5, 10, 15
Rated Continuous Thermal Current: 1,2 x in
Degree of Protection: IP20

Busbar and Mounting feet fixings are supplied as standard.


Brand Crompton
Model XL7C
Input Range 0-4000AAC
Output 0-1AAC
Tariff Code 8504.31.3900
Insulation Level 720V. Tested 4kV 50Hz for 1 min.
Current Transformers

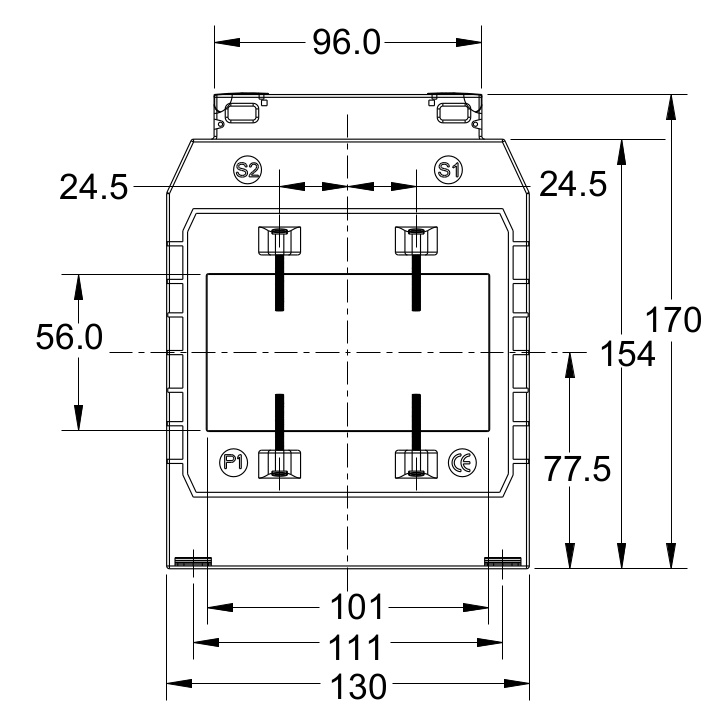

CT Window 56mm x 101mm
