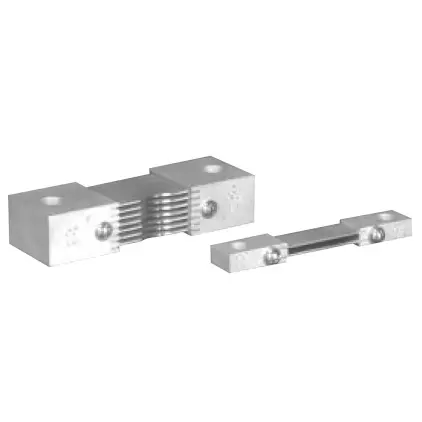

The type V switchboard shunts without an insulating base and cannot be mounted directly to conductive surfaces. Available in ranges of 15 Amperes through 600 Amperes with a 50mV output and 50 Ampere through 600 Ampere with a 100mV output, the type V is designed for bus-bar mount utilizing the bolts (not included) 5/16" for 300A or less and 3/8" for 375A or more.
Note:
For continuous operation, it is recommended that shunts not run at more than two thirds (2/3) the rated current under normal conditions of use as per AIEEE standards.

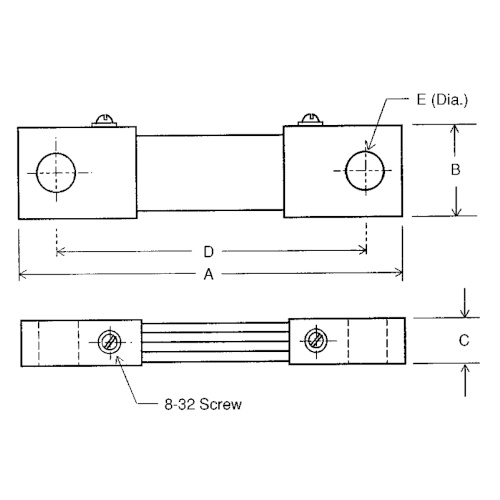

Dimensions
- A = 4.12"
- B = 0.81"
- C = 0.50"
- D = 3.31"
- E = 0.34" (Hole)
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Product | |
|---|---|
| Brand | Canadian Shunt |
| Model | V |
| Input Range | 0-200A |
| Output | 0-50mV |
| Tariff Code | 8533.29.0000 |
| ECCN | EAR99 |
| Accuracy | 0.25% Class |
| Current Shunt | |
|---|---|
| Shunt Resistance | 250 µΩ (0.00025 Ohms) |
