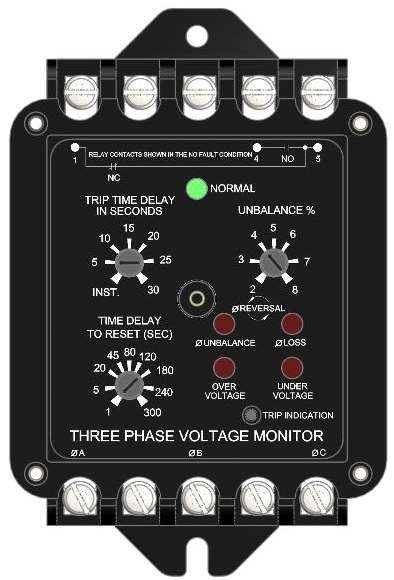

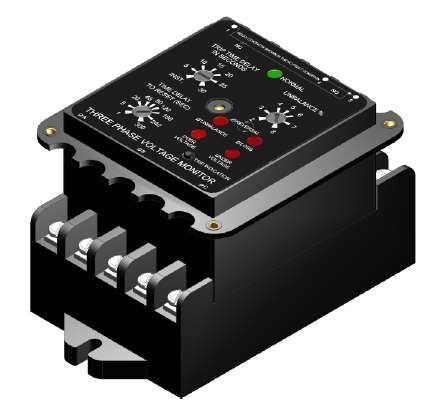

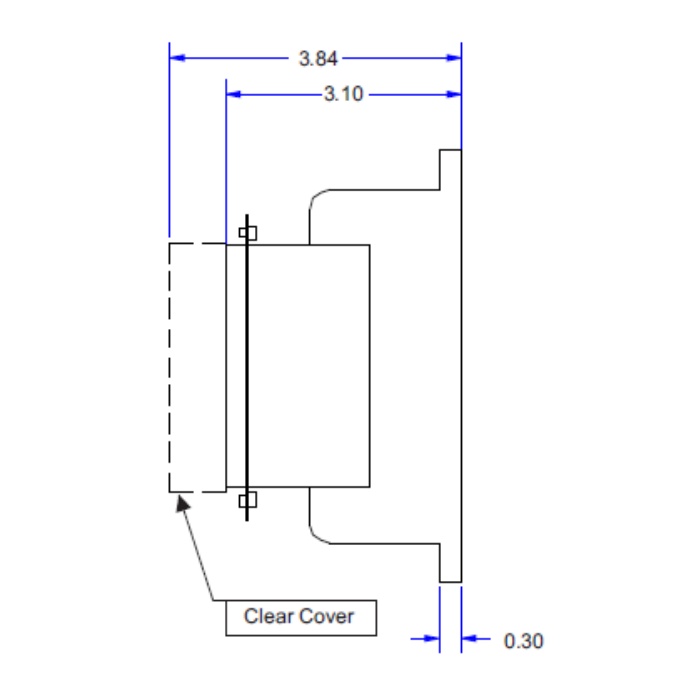

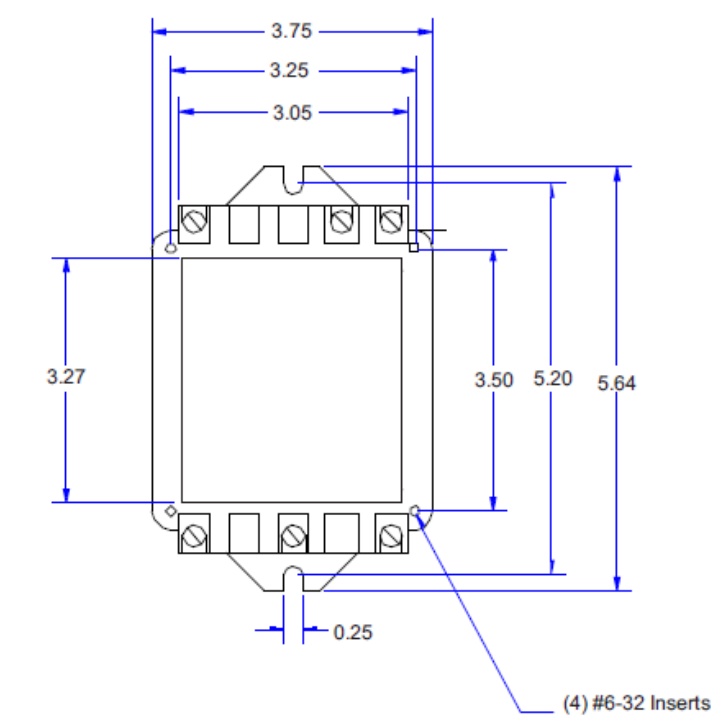

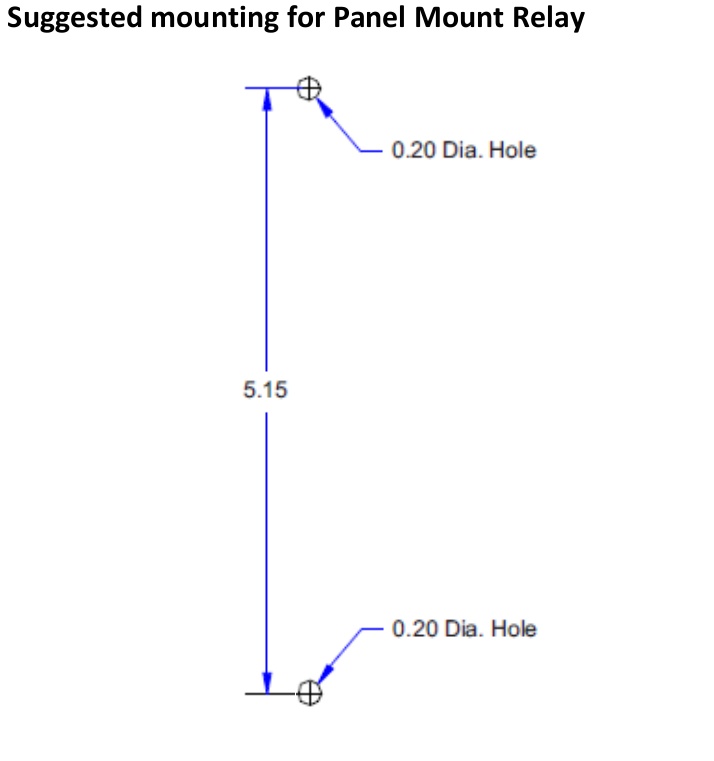

Model EI-SPVR2 Relay
Application: The EI-SPVR2 is designed to monitor Phase to Phase voltage for three Phase electrical equipment that are sensitive to Phase Loss, Phase Unbalance, Phase Reversal, Over-Voltage, and Under-Voltage conditions.
The SPVR2 has a set of “Form C” contacts that change state if an abnormal condition exists for the duration of the adjustable time delay. The exception is that the unit will trip instantaneously ant time it detects a Phase Reversal or the Over-Voltage reaches 150% of rated voltage, or the voltage drops below 50% rated voltage after being in Under-Voltage alarm conditions for more than 1 sec.
Power On Indication (LED)
“Form C” contacts
Phase Reversal Protection with LED indication
Phase Unbalance Protection (2% to 8% Adjustable) with LED indication
Phase Loss Protection with LED indication
Under voltage Protection (80%) with LED indication
Over Voltage Protection (115%) with LED indication
Adjustable Trip Time Delay (0 to 30 Sec.)
Adjustable Reset Time Delay (except for the 120V version) (1 Sec to 5 min.)
Automatic Reset when condition clears and at Power Up
Maintain Fault indication after Loss of Power.
|Input Range||3P3W 480VAC L-L|
