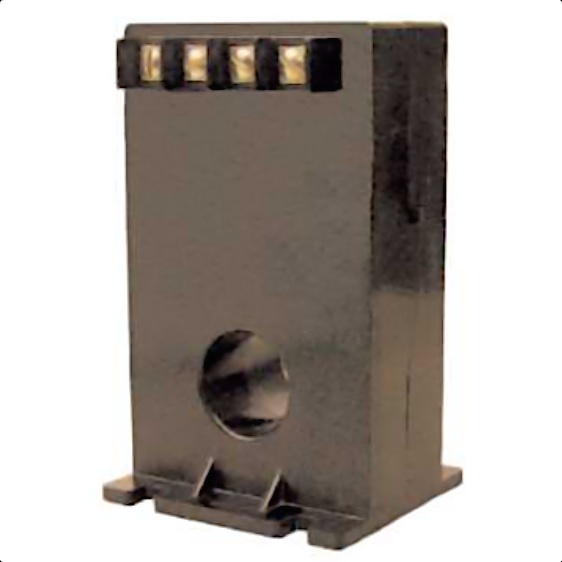

Model PCL 0-10 0-15 0-20AAC, 0.94" Window, Output 4-20mADC, Power Supply. 120VAC, Transducer, AC Current, Average Sensing, ITI

845.54 845.54 USD 845.54


  • Brand
  • Model
  • Input Range
  • Input Range
  • Input Range
  • Input Frequency
  • Input Frequency
  • Output
  • Tariff Code
  • ECCN

This combination does not exist.

  • Operating Range:
    • Input: 0-10, 0-15, 0-20AAC
    • Output: 4-20mADC
  • Frequency: 50-60 Hz.
  • Accuracy:
    • +0.5% F.S. maximum.
    • 1% max. peak ripple on output.
    • Response Time: <150 ms (10% to 90%)
    • Output load (RL): 0-1000 Ω
    • Maximum output: 30 mADC.
  • Supply Voltage Range: 120VAC + 10%.
  • Ambient Temperature Range:
    • Effect on accuracy + 0.02%/°C
      Operating: -30°C to +60°C
      Storage: -55°C to +85°C
  • Terminal are brass studs No. 10-32 with one flatwasher, lockwasher and regular nut.
  • Approximate weight: 1.0 lbs.
  • Insulation Level: 600 Volts, 10 kV BIL full wave

The PCL transducer accurately converts a sinusoidal ac input current to a proportional dc output current. The high performance integrated circuit amplifiers achieve a constant current output, insensitive to a variable impedance load. This allows the PCL to be easily applied to remote instrumentation, motor control and energy management installations. The output signal (4 to 20 mA dc) can be transmitted over long distances with no loss in accuracy. Model numbers PCL 20 and PCL 75 have been provided with a range selector switch for customer, selectable current ranges. The input circuit is average responding. The output is calibrated to read true RMS for a pure sinus waveform.


Brand Instrument Transformers Inc
Model PCL
Input Range 0-10AAC, 0-15AAC, 0-20AAC
Input Frequency 50Hz, 60Hz
Output 4-20mADC
Tariff Code 8504.31.4035
