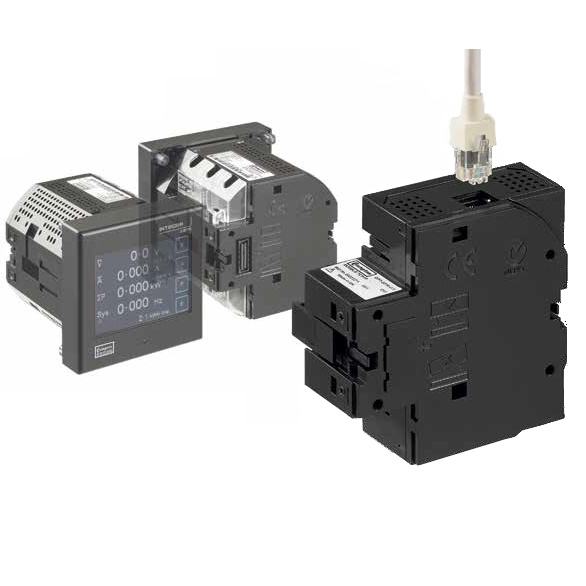

OPT-2270-070
Option Module, Modbus TCP/IP, Integra 2170 & 2270, Crompton
INTEGRA 2270
MODBUS TCP/IP
COMMUNICATION MODULE
Ethernet Connection
The Integra 2270 Power Quality Meter with Ethernet communication module supports connection to SCADA systems using the MODBUS TCP protocol. The Integra 2270 Meter with Ethernet module acts as a MODBUS slave device and may be queried by a MODBUS master device which conforms to the MODBUS TCP protocol. The Integra 2270 Ethernet module supports 10Base-T Ethernet communication. Connection is normally via an Ethernet switch or hub that supports the IEEE 802.3 standard at 10/100Mbps.
IP Address Assignment
The Integra 2270 Ethernet option supports dynamic IP address assignment from a DHCP server. The Integra 2270 Meter default IP address is factory set to “192.168.1.100”, but may be changed by the user before installation. The IP address of the Integra 2270 Meter at installation must be appropriate for the network to which it is attached and should be determined by the network administrator. The product will remember the last IP assignment if moved to different networks.
Specifications
| Brand | Crompton |
| Model | Integra 2270 |
| Communications | Modbus TCP/IP |
| Tariff Code | 9030.90.8000 |
| ECCN | EAR99 |
