OPT-2270-020

INTEGRA 2270

DATALOGGING MODULE

Datalogging Features

• 32GB external memory card (sold separately)
• RTC timestamp of all recorded parameters
• LED status indication
• Min/Max recording with timestamp
• Event recording with timestamp
• Alarm recording with timestamp
• Billing log recording with timestamp
• Custom parameter log (6)
• Waveform capture log

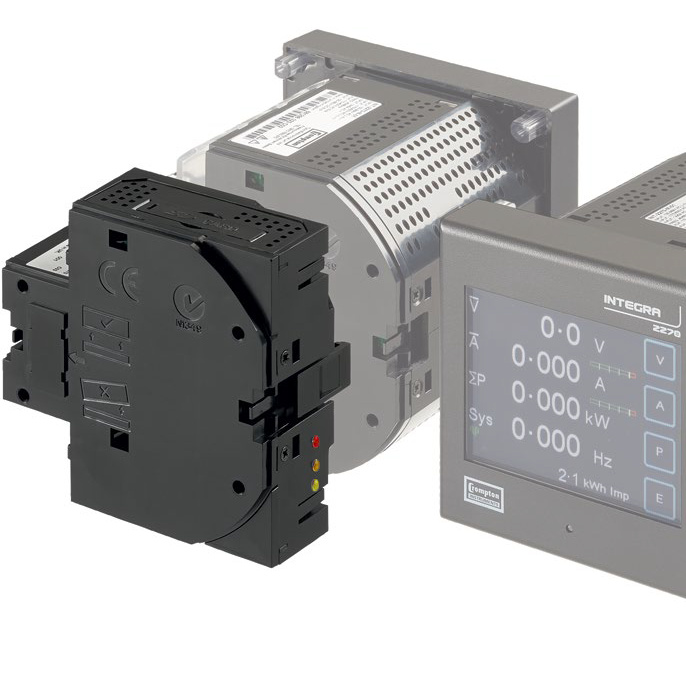

Datalogging Module
The Integra 2270 Power Quality Meter with data logging module supports the recording of data to removable storage device.

The stored data can be timestamp using the internal Real Time Clock (RTC) and each stored entry is time/date stamped to 1ms.

The data logging module includes a 32GB memory card (sold separately) that allows an easy data transfer to a PC where the data can be analysed .

The product supports FIVE types of data logging and all types can be set up by the user at regular recording intervals, via the full colour touch screen on the Integra 2270 power quality meter.

Each file of recorded data is stored in a comma separated variable (.csv) file to ensure an easy import into data manipulation tools such as excel or building management systems.

LED Status Indication

⬤ Red - Failed to Write, Card write protected, No Card detected

⬤ Orange - data Logging active (DO NOT REMOVE CARD)

⬤ Yellow - Card being accessed (Read or Write)
