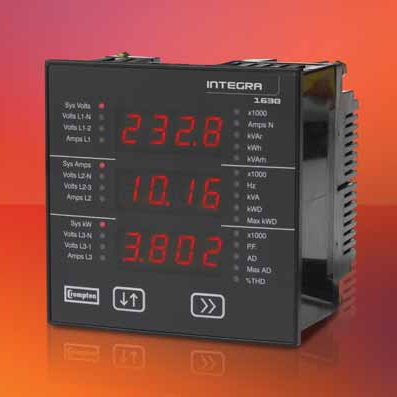

Multifunction Integra 1630 digital metering systems provide high accuracy 0.2% measurement, display and communication of all major electrical and power quality parameters including total harmonic distortion (THD) measurement up to the 31st harmonic. To suit user requirements, the range includes single-phase, 3-phase 3-wire and 3-phase 4-wire capability, all selectable at the point of installation.
This DIN 96 panel mounted enclosure offers simple programming and display of up to 35 electrical measurement parameters via a simple menu-driven user interface on the front panel. Integra 1630 digital metering system benefits from optional pulsed and digital communication outputs. This allows enhanced status information of up to 60 measured parameters to be communicated to SCADA, building management or other systems. Additionally, a simple Windows-based software package is available to remotely configure the Integra and display all 60 major electrical and power quality parameters.
Specifications
| Brand | Crompton |
| Model | Integra 1630 |
| Form Factor | 96x96mm 1/4 DIN |
| Input Range | 1P2W 140-277VAC L-N, 0-5AAC, 3P3W 241-480VAC L-L 0-5AAC, 3P4W 241-480V L-L (140-277V L-N) 0-5AAC |
| Input Frequency | 50Hz, 60Hz |
| Aux. Power Supply | Switching ~100-240VAC, 50/60Hz, Switching ~100-260VDC |
| Tariff Code | 9030.39.3000 |
| ECCN | EAR99 |
