INTEGRA 1222 DIGITAL METERING SYSTEM
The Crompton Instruments Integra 1222 digital metering system (dms) from TE Connectivity enables cost effective solution for the measurement and display of all electrical parameters including total harmonic distortion (THD) up to the 63rd harmonic.
High definition screen features programmable backlight for high contrast visibility in low light and direct sunlight applications. The light can be programmed to automatically dim after a set period of time for energy saving.
New “petal” array icons shows the percentage of full scale power of the measured system and the instantaneous PF measurement gives clear PF indication. Total power consumption is displayed on the screen at all times.
QUICK TO CONNECT PLUG AND SOCKET WIRING SOLUTION
Integra 1222 dms and the 3-in-1 current transformers feature Q2C wiring solution for simple yet fast installation utilizing plug and socket connections and precut wiring looms, which allow to reduce assembly time and connection errors. IN-OUT voltage connections reduce wiring and installation time.
Modbus RTU (RS485) standard on all models. Two pulsed outputs on self powered. Optional modules available Ethernet (TCP), BACnet and Data Logger.
ENCLOSURE AND SYSTEM

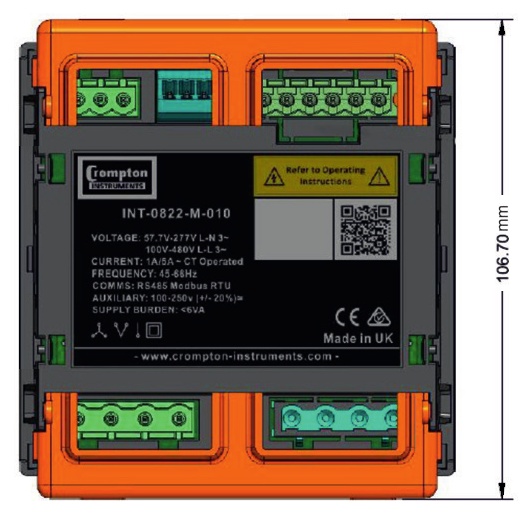

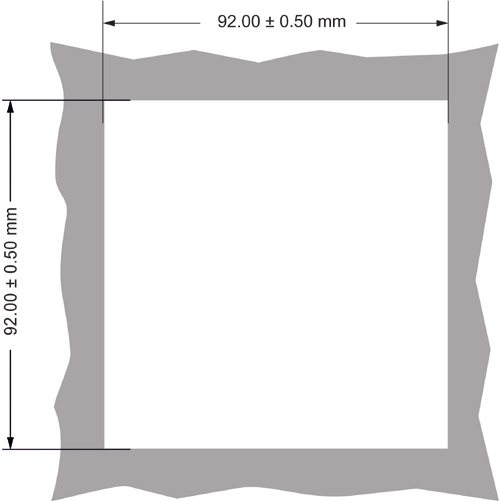

The DIN 96 panel mounted enclosure includes integral panel mounting clips for quick and easy fitting and to suit user requirements, the range includes single-phase, three-phase three-wire and three-phase four-wire capability, all selectable at the point of installation. Optional IP64 kit available.

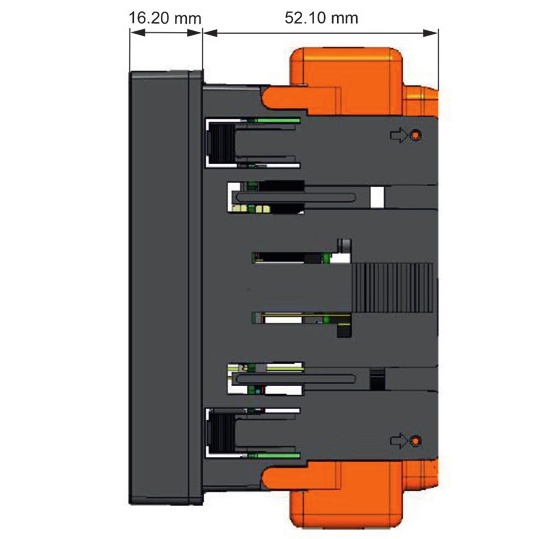

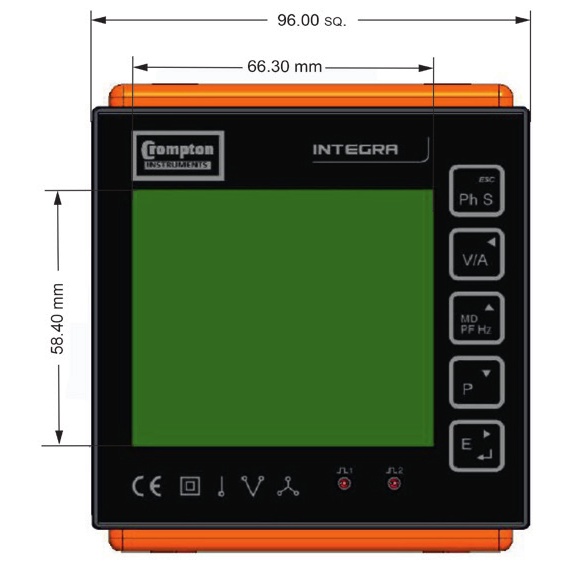

|Form Factor||96x96mm 1/4 DIN|
|Input Range||1P2W 100-277VAC L-N, 0-1A or 0-5A, 3P3W 173-480VAC L-L, 0-1A or 0-5A|
