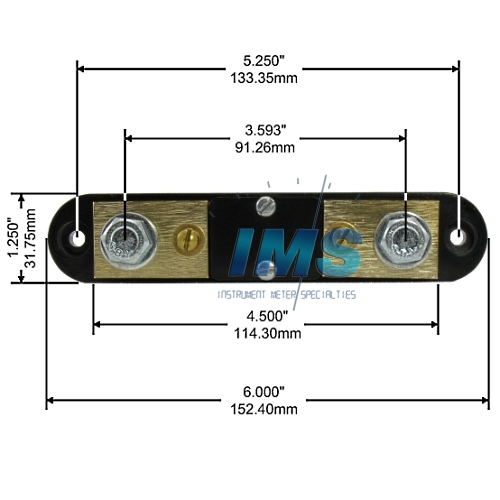

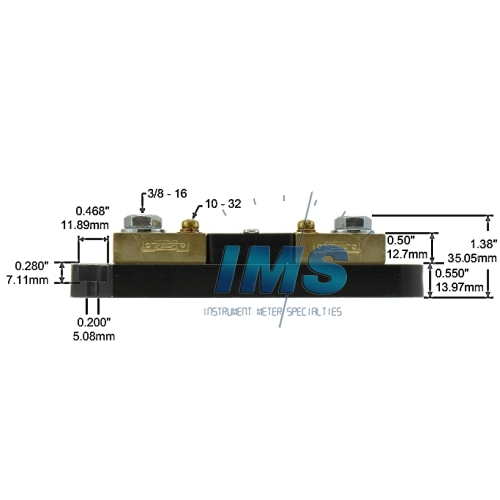

The type HA has an insulating base and can be mounted on conductive surfaces. Available in ranges of 0.5 amp through 600 amps with a 50mV output and 1 amp through 600 amps with a 100mV output, the HA is designed for power cable hook-up utilizing the 3/8-16 screws. Due to fragile nature of the resistance element the lower amperage shunts come with a protective cover. This popular design is available without the insulating base if desired.
Note:
For continuous operation, it is recommended that shunts not run at more than two thirds (2/3) the rated current under normal conditions of use as per AIEEE standards.
Specifications
| Product | |
|---|---|
| Brand | Empro |
| Model | HA |
| Input Range | 0-5A |
| Output | 0-100mV |
| Tariff Code | 8533.29.0000 |
| ECCN | EAR99 |
| Current Shunt | |
|---|---|
| Shunt Resistance | 20 mΩ (0.02 Ohms) |
