HA-100-100

https://www.metersales.com/web/image/product.template/26399/image_1920?unique=2d6633d

Model HA 100 Ampere 100 Millivolt Shunt, Empro

54.17 54.17 USD 54.17

54.17

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Shunt Resistance
  • Accuracy

This combination does not exist.

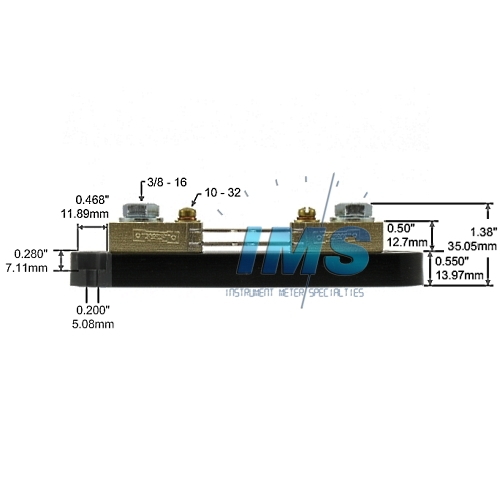

The type HA has an insulating base and can be mounted on conductive surfaces. Available in ranges of 0.5 amp through 600 amps with a 50mV output and 1 amp through 600 amps with a 100mV output, the HA is designed for power cable hook-up utilizing the 3/8-16 screws. This popular design is available without the insulating base if desired.

Note: For continuous operation, it is recommended that shunts not run at more than two thirds (2/3) the rated current under normal conditions of use as per AIEEE standards.

Specifications

Product
Brand Empro
Model HA
Input Range 0-100A
Output 0-100mV
Tariff Code 8533.29.0000
ECCN EAR99
Accuracy 0.25% Class
Current Shunt
Shunt Resistance 1 mΩ (0.001 Ohms)
