H-5000-100-S

https://www.metersales.com/web/image/product.template/72786/image_1920?unique=8ac6600

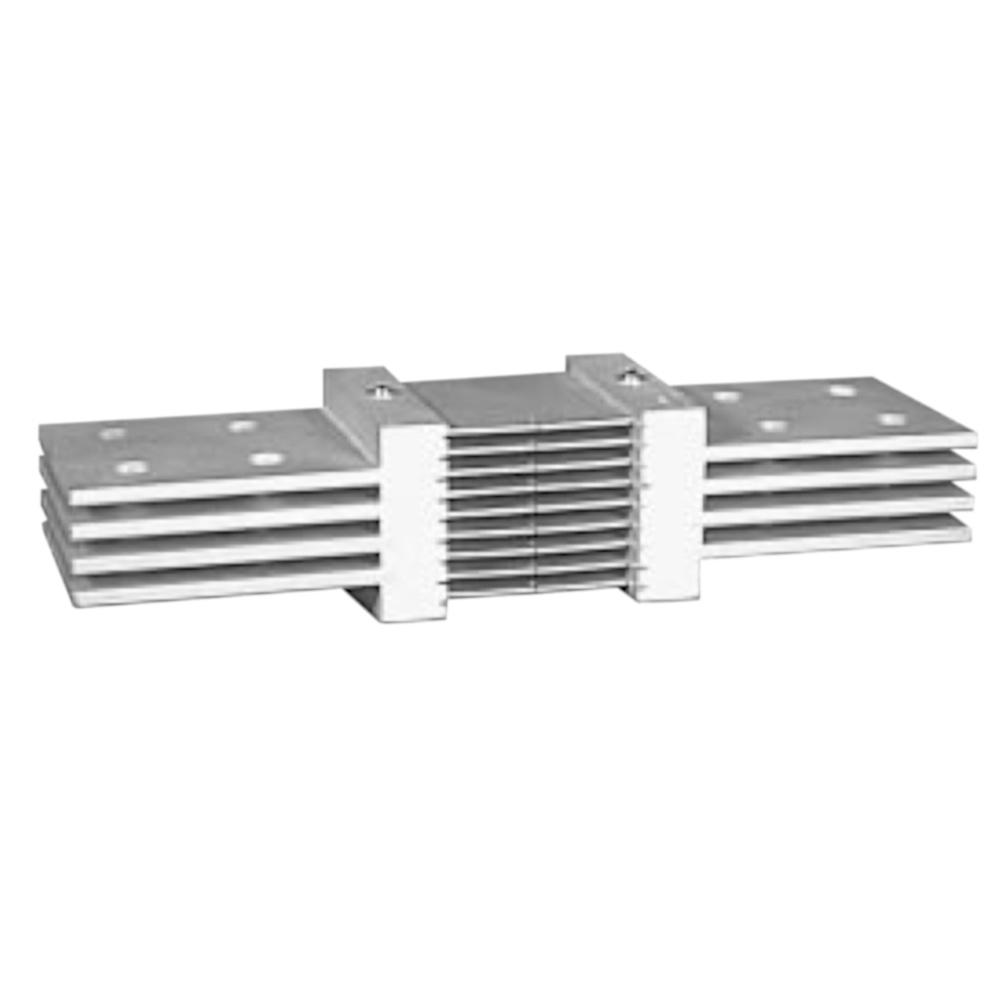

Model H 5000 Ampere 100 Millivolt Shunt, Silver Plated, Canadian Shunt

$ 820.00 820.0 USD $ 820.00

$ 820.00

Not Available For Sale

  • Brand
  • Model
  • Tariff Code
  • ECCN
  • Shunt Resistance
  • Input Range
  • Output
  • Accuracy

This combination does not exist.

Contact Us

​

Dimensions

A. 14.25"​ (361.95mm) Length of Shunt

B. ​4" (101.6mm) Width of Shunt.

C. ​3" (76.2mm) Height of Shunt without mV Screws.

D. ​8.25" (209.55mm) Length between Inner Hole Spacing Center.  Add 4" (101.6mm) for Outer Hole Spacing.

E. ​0.56" (14.27mm) Hole Diameter

F. ​2" (50.8mm) Width between Holes on Center Spacing

G. ​1" (25.4mm) Width between Holes on Center from Blade Side.

H. ​4-Blades

Replaces

Empro F-5000-100SP

Specifications

Product
Brand Canadian Shunt
Model H
Tariff Code 8533.29.0000
ECCN EAR99
Input Range 0-5000A
Output 0-100mV
Accuracy 0.25% Class
Current Shunt
Shunt Resistance 20 µΩ (0.00002 Ohms)
