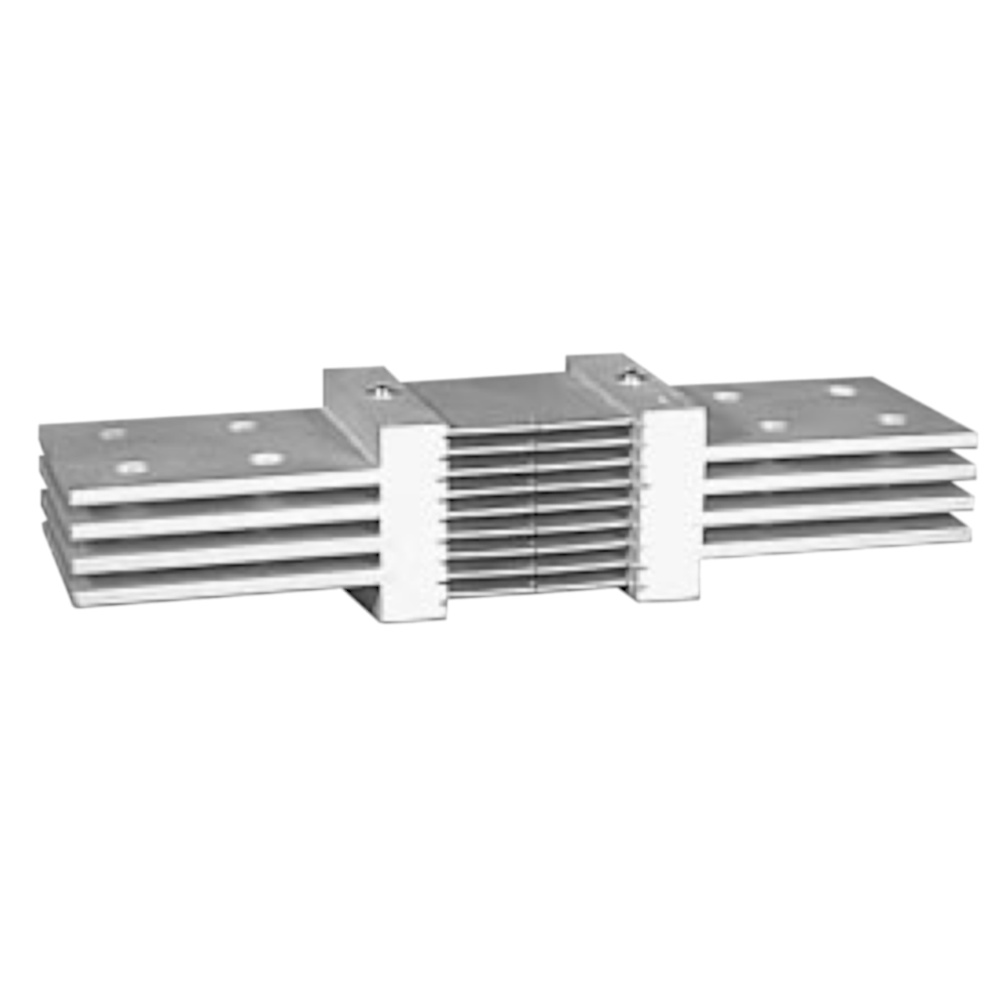

Dimensions
A. 14.25" (361.95mm) Length of Shunt
B. 5" (127mm) Width of Shunt.
C. 5" (127mm) Height of Shunt without mV Screws.
D. 8.25" (209.55mm) Length between Inner Hole Spacing Center. Add 4" (101.6mm) for Outer Hole Spacing.
E. 0.562"x0.75" (14.27x19.05mm) Elongated Hole LxW
F. 2.25" (57.15mm) Width between Holes on Center Spacing. Elongated Holes will Accommodate 2" (50.8mm) to 2.5" (63.5mm) Width between Holes on Center Spacing
G. 1" (25.4mm) Width between Holes on Center from Blade Side.
H. 4-Blades
Replaces
Empro F-10000-100SP
Specifications
| Product | |
|---|---|
| Brand | Canadian Shunt |
| Model | H |
| Tariff Code | 8533.29.0000 |
| ECCN | EAR99 |
| Input Range | 0-10000A |
| Output | 0-100mV |
| Accuracy | 0.25% Class |
| Current Shunt | |
|---|---|
| Shunt Resistance | 10 µΩ (0.00001 Ohms) |
