Model GFP, Ground Fault Relay, Panel Mount, 120VAC, without Interlock, with Form C Contacts, 100-1200 Amp Trip Current, Electromagnetic Industries

1,414.13 1414.13 USD 1,414.13


  • Brand
  • Model
  • Form Factor
  • Input Range
  • Input Frequency
  • Input Frequency
  • Tariff Code
  • ECCN

This combination does not exist.


With Inverse Time Capability

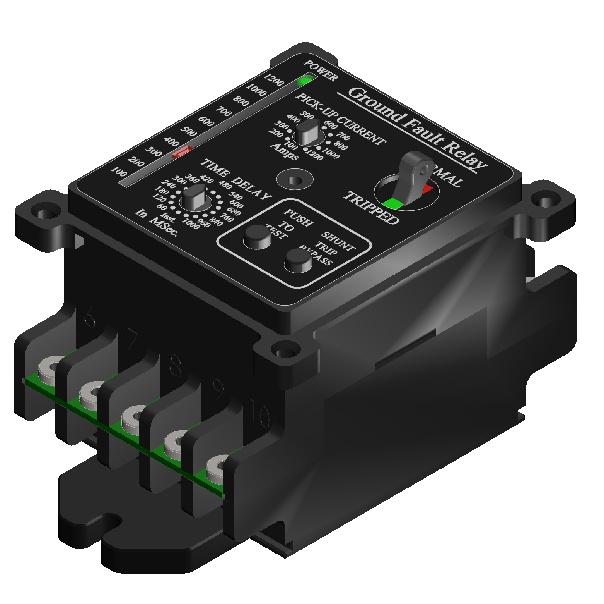

Model GFP Relay

The GFP system is designed for electrical equipment protection, not for personnel protection

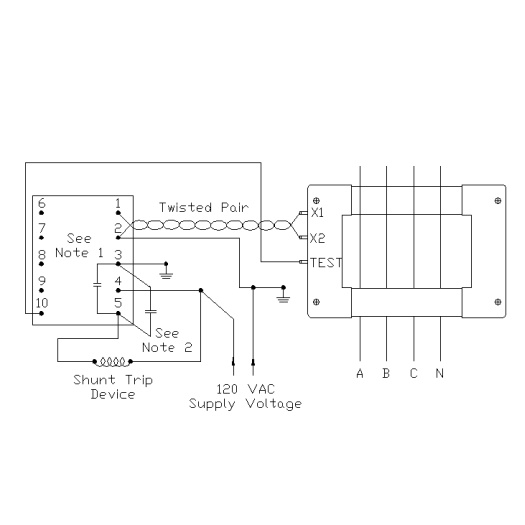

These Class 1 (Model GFP) Ground Fault relays and sensors are used together to provide a system for detecting ground fault current in a grounded AC power system. When the system detects a ground fault that reaches a pre-selected current level and time delay, the relay initiates a trip signal for a shunt trip disconnect device to open and clear the fault.
The relays are also available with interlocks (for coordination of multiple devices in a system) and without interlocks (for single device systems).
The GFP non-interlock relays form/fit/function replacements for the BGFL Ground Fault relay without interlock.

  • Operating Range: Trip currents models are available for 5-60, 30-360, and 100-1200A. The time delay is adjustable from instantaneous to 1 second.
  • Input Power: 2VA plus shunt coil requirements. (Rated @ 120 VAC)
  • Input Withstand: 200,000 Amperes RMS for 3 cycles, 50/60 Hz.
  • Nominal Input Voltage: 120 Volts AC, 125 Volts DC, 48 Volts DC, 24 Volts DC
  • Frequency: 50/60 Hz
  • Ambient Temperature Range: -30 Deg C. to 60 Deg C.
  • Contact Ratings:
    • Device Input Power: 120 VAC
    • Inrush: 10 A
    • Continuous: 3 A
  • Two (2) Styles “Standard” (without interlock) and “Zone Interlocking”
  • Integral test panel with “Push to Test” and “Shunt Trip Bypass” push-buttons for proper testing of device with the ability to trip or not to trip the protective device.
  • Power On Indication (LED)
  • Real time fault current level indicator(indicating actual value of trip set point)
  • Positive visual trip indicator.
  • Indication of fault current level at trip after unit has tripped.
  • Adjustable time delay with three time delay characteristics options
  • Discrete current threshold adjustment.

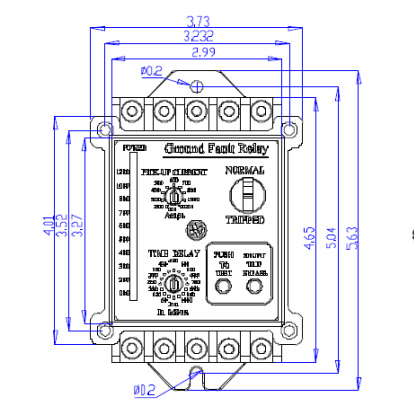

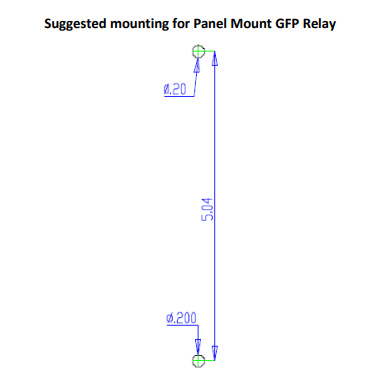

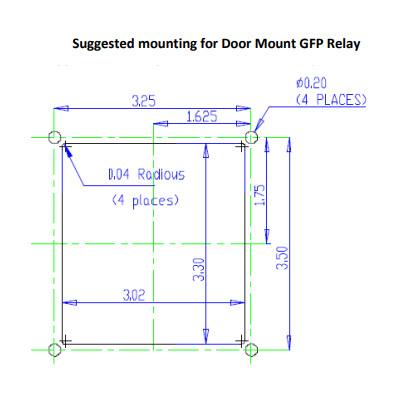

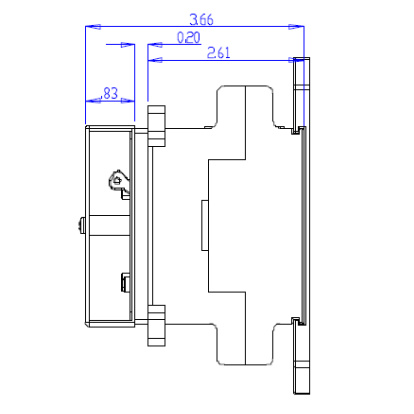

  • Panel or door mounted
  • Clear plastic cover
  • Electromechanical relay output positive “ON” and “OFF”
  • Operates with molded case power circuit breakers, bolted pressure switches, or fusible disconnect switches.
  • Optional “Form C” contacts
  • Meets NEC service entrance equipment standards.


Brand Electromagnetic Industries
Model GFP
Form Factor Panel Mount (Surface)
Input Range 100-1200AAC
Input Frequency 50Hz, 60Hz
Tariff Code 8536.30.0000
