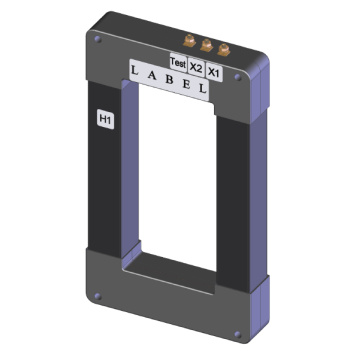

RECTANGULAR GROUND FAULT CURRENT SENSOR
Model GFL
Available Trip Currents: 5-60, 30-360, and 100-1200A
The GFL system is designed for electrical equipment protection, not for personnel protection.
Application: These Ground Fault Sensors (type GFL) are available in a variety of sizes. Care should be taken when determining the physical size of the senor window. The ground fault sensor will only respond to ground faults that occur between the position of the sensor and the load. Each sensor comes with both normal and test windings. These sensors are only for use with BGFL, GFP, and GFPV relays.
Operating Range: Trip Currents models are available for 5-60, 30-360, and 100-1200A. (trip current tolerances +/- 8%)
Frequency: 50/60 HZ
Insulation Level: 600 Volt, 10 kV BIL full wave.
Terminals: No. 8-32 brass terminals with flat washer, lock washer, and nut.
Split Core: Sensors have the take apart option allowing installation without disassembly of the primary bus or cables.
CAUTION:
All appropriate safety precautions must be followed for the installation of these devices including de-energizing the incoming power prior to installation. It is recommended the sensor be installed by a trained electrician. This sensor must have its secondary terminals shorted, or have the relay connected prior to energizing the primary windings.

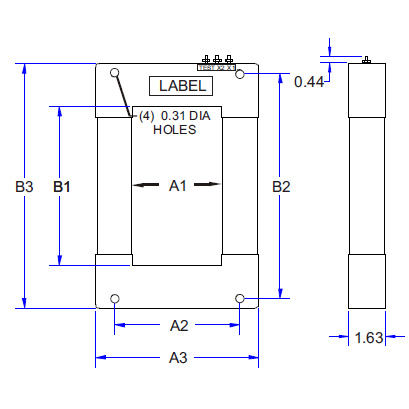

Dimensions
- Window
- Width, A1 = 5.8"
- Height, B1 = 18.1"
- Body
- Width, A3 = 9.0"
- Height, B3 = 21.9"
- Mounting Hole Pattern
- Horizontal, A2 = 7.0"
- Vertical, B2 = 21.0"
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | GFL |
| Input Range | 100-1200AAC |
| Tariff Code | 8536.30.0000 |
| ECCN | EAR99 |
| Current Transformers | |
|---|---|
| CT Window | 5.8" x 18.1" Window |
