FI-1000-50

https://www.metersales.com/web/image/product.template/71839/image_1920?unique=dda10d2

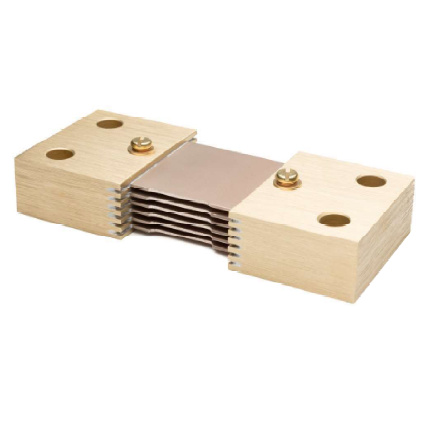

Model FI 1000 Ampere 50 Millivolt Shunt, Crompton

$ 280.00 280.0 USD $ 280.00

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Shunt Resistance
  • Accuracy

This combination does not exist.

Contact Us

​

Share

The Crompton model FI shunts are available in ratings from 300 through 1200 amps in either 50mV and 100mV outputs. The model FI shunt is similar to the model FH; only larger and can handle more current.  The model FI shunt can be used in a busbar or cable application.

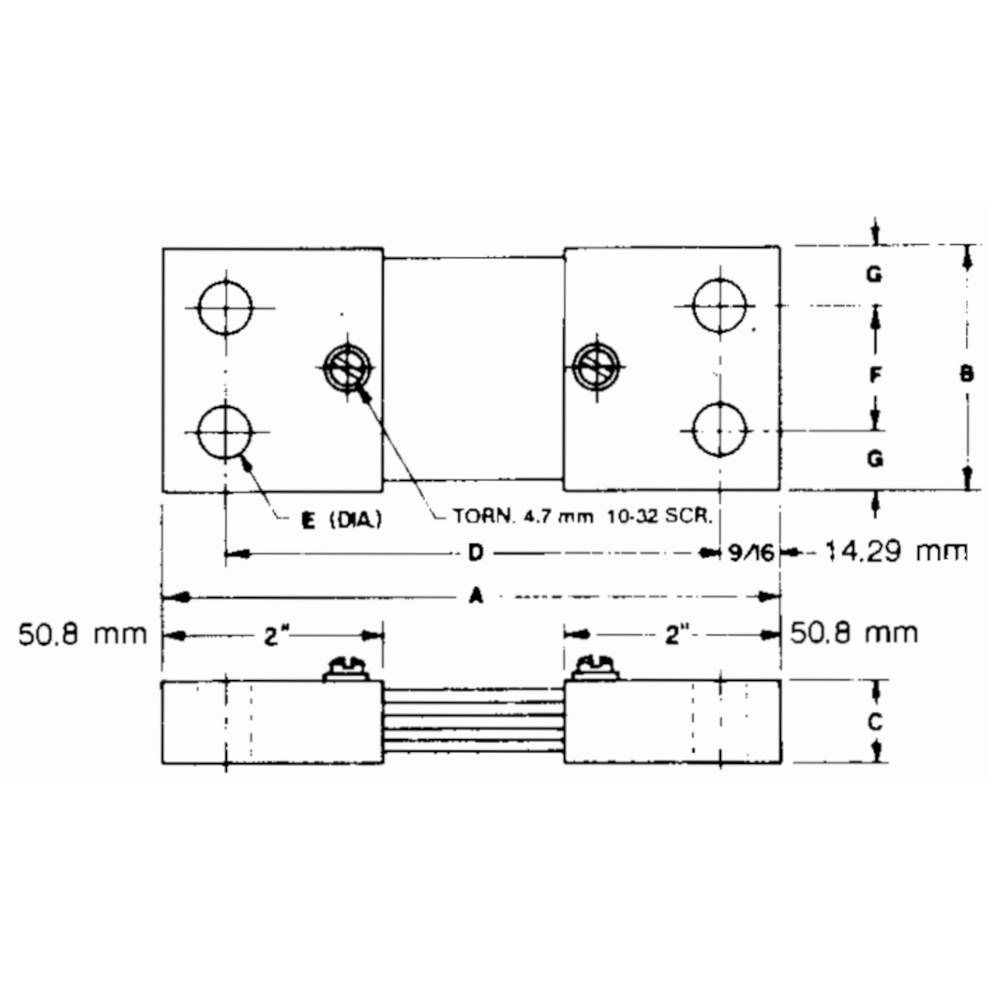

Dimensions

A: 5.875"  (149.23mm)
B: 2.500"  (63.5mm)
C: 1.000"  (25.4mm)
D: 4.75"  (120.65mm)
E: 7/16"    (11.11mm)
F: 1.500"  (38.1mm)
G: 0.500" (12.7mm)

Specifications

Product
Brand Crompton
Model FI
Input Range 0-1000A
Output 0-50mV
Tariff Code 8533.29.0090
ECCN EAR99
Accuracy 0.25% Class
Current Shunt
Shunt Resistance 50 µΩ (0.00005 Ohms)
