DT30-1NZ0000000000

https://www.metersales.com/web/image/product.template/71844/image_1920?unique=104ccce

Model Delta 1000 Rotate-able Amp Clamp, 0-1000A AC/DC, Sifam Tinsley

225.00 225.0 USD 225.00

225.00

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Tariff Code
  • ECCN

This combination does not exist.

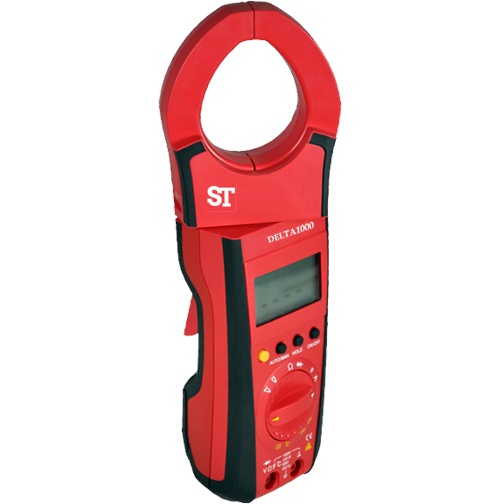

Delta 1000

The Delta 1000 measures important electrical parameters like AC Current (TRMS), DC Current, AC Voltage(TRMS), and DC Voltage. It also features Capacitance, Ohm & Continuity, frequency, and Duty cycle and temperature measurement.

Special Features

  • Delta 1000A is a highly innovative design for features those increases safety and comfort of user.
  • Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access.
  • Location and design of trigger eliminates fatigues caused by single nger operation.  It allows spreading the force required to open the jaws over more than one nger to
    ensure comfortable operation.
  • Clamp jaws can be opened or closed with the trigger placed at bottom side away from the jaws. This allows the user to place his/her hand at safer distance from live conductor.  This greatly reduces exposure of human beings to electrical shocks.

Specifications

Brand Sifam Tinsley
Model Delta 1000
Input Range 0-30mVDC, 0-300mVDC, 0-3VDC, 0-30VDC, 0-300VDC, 0-1000VDC, 0-3VAC, 0-30VAC, 0-300VAC, 0-1000VAC, 0-30 Ω, 0-300 Ω, 0-3kΩ, 0-30kΩ, 0-300kΩ, 0-3MΩ, 0-30MΩ, 2-300A AC/DC, 1000A AC/DC, Diode Test, 0-30nF, 0-300nF, 0-3μF, 0-30μF, 300Hz, 3kHz, 30kHz, 100kHz, Pt100 RTD, Pt1000 RTD
Tariff Code 9030.33.3400
ECCN EAR99
