19mm (0.75“) Digit Height
200mV d.c. Full Scale Reading (F.S.R.)

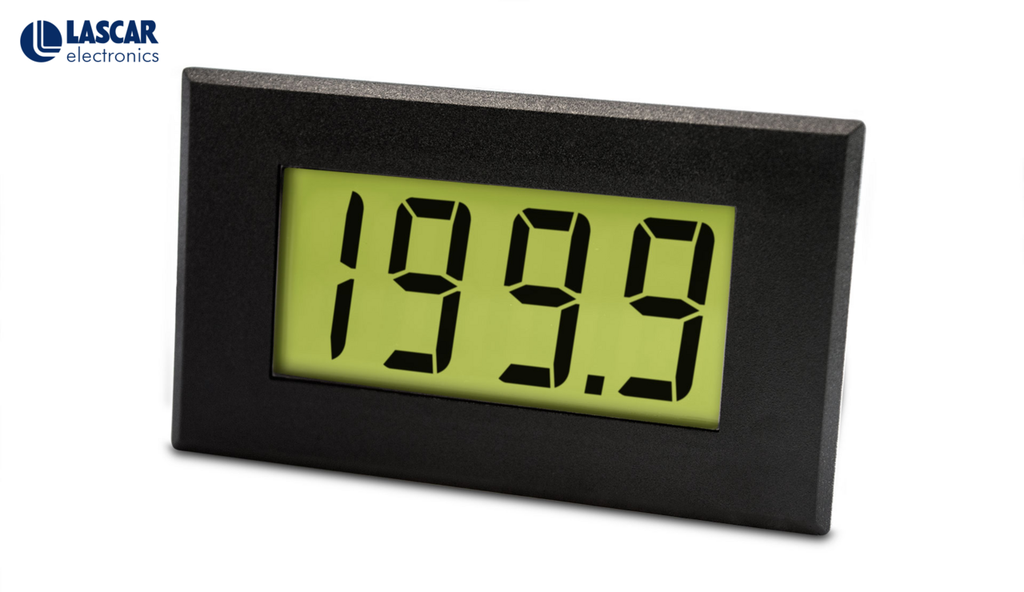

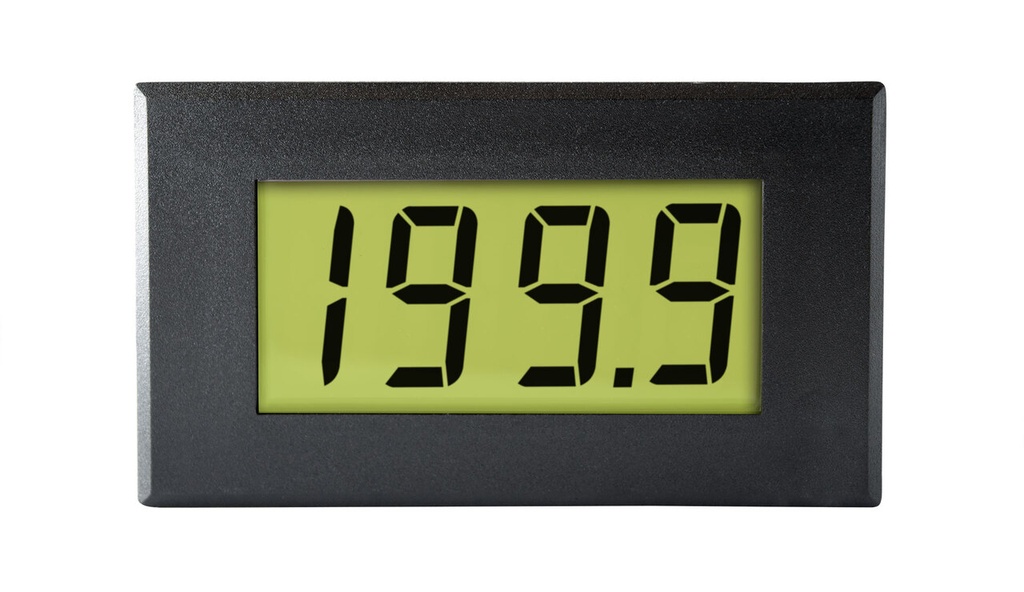

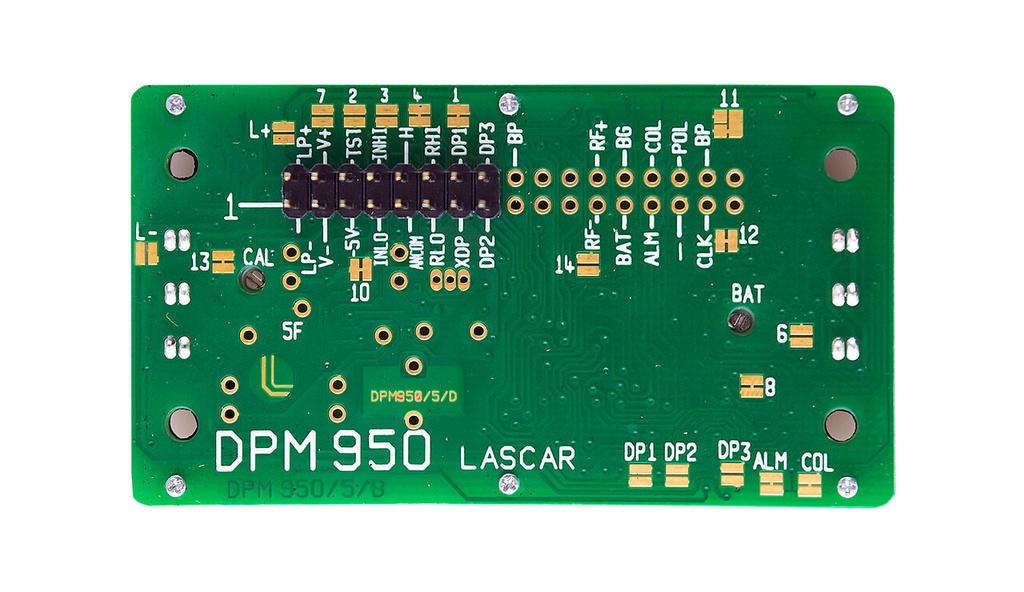

This large panel meter features a 3½ digit LCD with 19mm (0.75") digit height and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 16-way IDC socket and can be fitted into a panel via the bezel, window and clips provided. The DPM 950 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
Very low current consumption results in a long battery life and makes the DPM 950 ideal for portable equipment. For low light viewing, a long life LED backlight is fitted. The meter is housed in a robust carrier which can be bolted in place or panel mounted using the bezel, window and clips provided.
To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module’s pins must not exceed 60Vdc. If voltages to the measuring inputs do exceed 60Vdc, then fit scaling resistors externally to the module. The user must ensure that the incorporation of the DPM into the user’s equipment conforms to the relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and Laboratory Use).

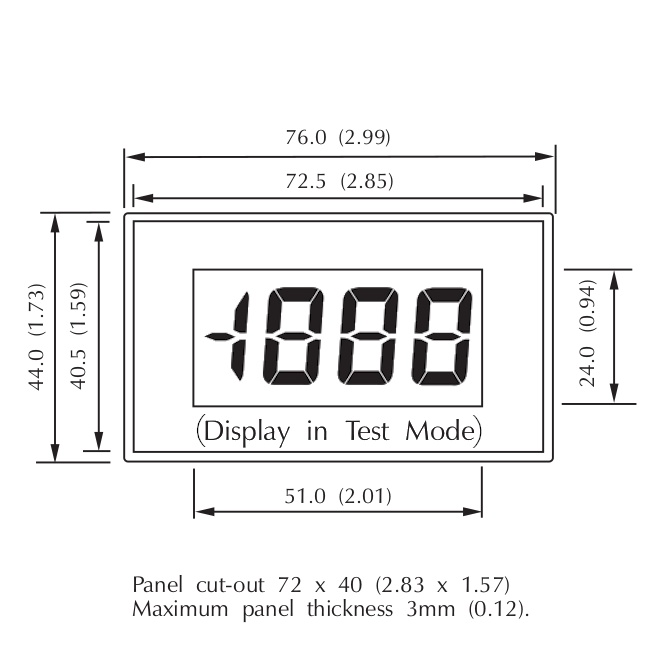

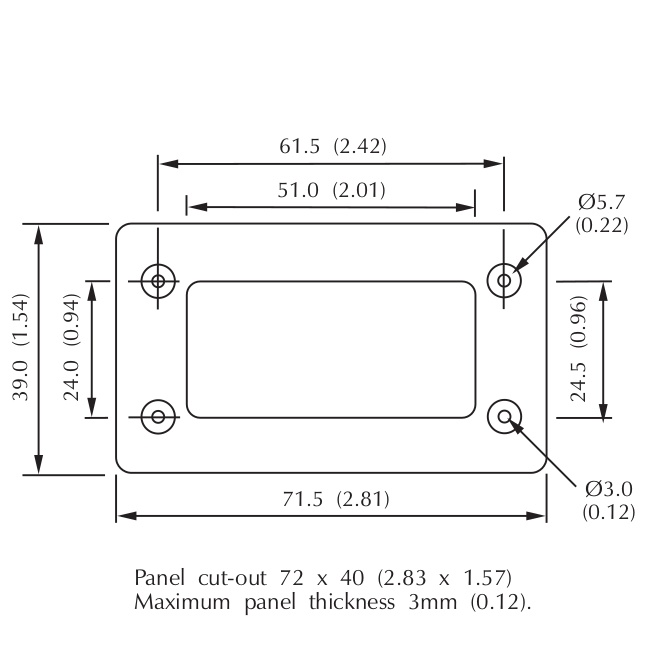

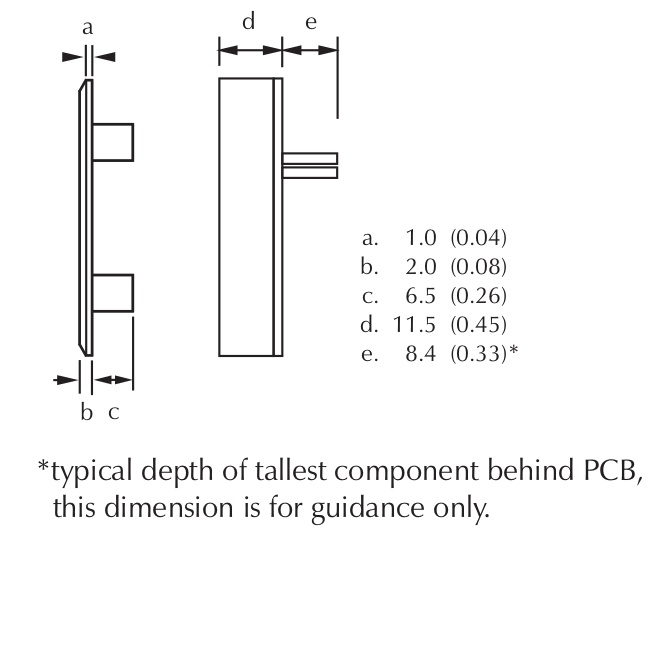

|Form Factor||72x40mm (2.83"x1.57")|
|Input Range||0-200mVDC, 0-2VDC, 0-20VDC, 0-200VDC, 0-2kVDC, 0-200µADC, 0-2mADC, 0-20mADC, 0-200mADC|
