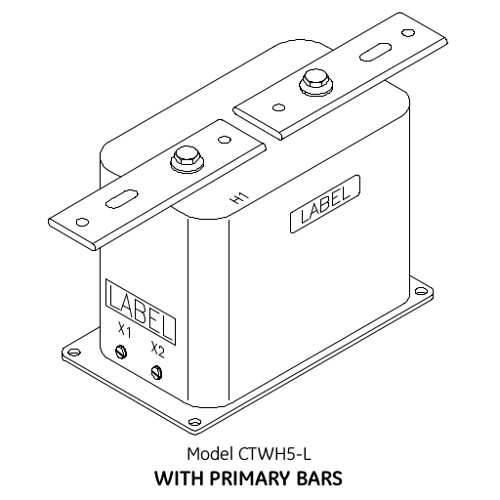

Model CTWH5 300:5A Ratio CT, T25 Relay Class, ITI

$ 2,784.24 2784.2400000000002 USD $ 2,784.24

$ 2,784.24

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class

This combination does not exist.

Contact Us

​

APPLICATION:
  • Metering and relaying.
FREQUENCY:
  • 50-400 Hz.
MAXIMUM SYSTEM VOLTAGE:
  • 15.5kV, BIL 110kV.
CONTINUOUS THERMAL CURRENT RATING FACTOR:

1.00 at 30°C amb., 0.85 at 55°C. amb.

Primary terminals are 1/2-13 bolts with one Belleville washer. Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.

Vacuum cast in polyurethane resin. Other ratios, secondary currents and dual ratios are available.

Approximate weight 34 lbs.


CTW5-L-110-T20 & CTWH5-L-110-T20 Datasheet

Specifications

Product
Brand Instrument Transformers Inc
Model CTWH5
Input Range 0-300AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 1.2 B0.9, 2.4 B1.8
Output 0-5AAC
Tariff Code 8504.31.4065
ECCN EAR99
Insulation Level 15.5kV, 110kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 1.0 at 30°C amb., 0.85 at 55°C amb.
CT Ratio 300:5A
CT Relay Class T25
