CTWH5-L-110-T20-300 ITI

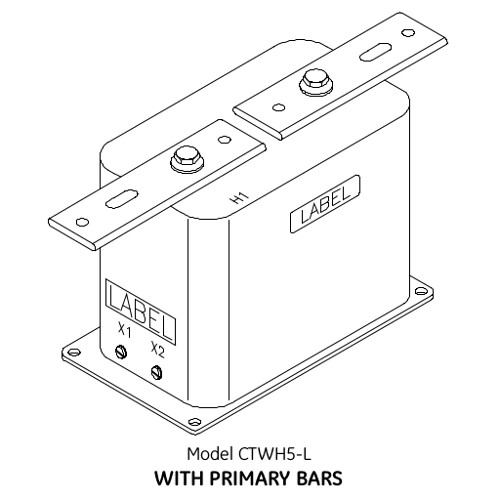

Model CTWH5 30:5A Ratio CT, T20 Relay Class, ITI

$ 2,362.98 2362.98 USD $ 2,362.98

$ 2,362.98

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Relay Class

This combination does not exist.

Add to cart

APPLICATION:

Metering and relaying.

FREQUENCY:

50-400 Hz.

MAXIMUM SYSTEM VOLTAGE:

15.5kV, BIL 110kV.

CONTINUOUS THERMAL CURRENT RATING FACTOR:

1.00 at 30°C amb., 0.85 at 55°C. amb.

Primary terminals are 1/2-13 bolts with one Belleville washer. Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.

Vacuum cast in polyurethane resin. Other ratios, secondary currents and dual ratios are available.

Approximate weight 34 lbs.

CTW5-L-110-T20 & CTWH5-L-110-T20 Datasheet

Specifications

Product
Brand	Instrument Transformers Inc
Model	CTWH5
Input Range	0-30AAC
Input Frequency	60Hz
Accuracy	0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 1.2 B0.9, 2.4 B1.8
Output	0-5AAC
Tariff Code	8504.31.4065
ECCN	EAR99
Insulation Level	15.5kV, 110kV BIL full wave

Current Transformers
CT Continuous Thermal Rating Factor	1.0 at 30°C amb., 0.85 at 55°C amb.
CT Ratio	30:5A
CT Relay Class	T20
