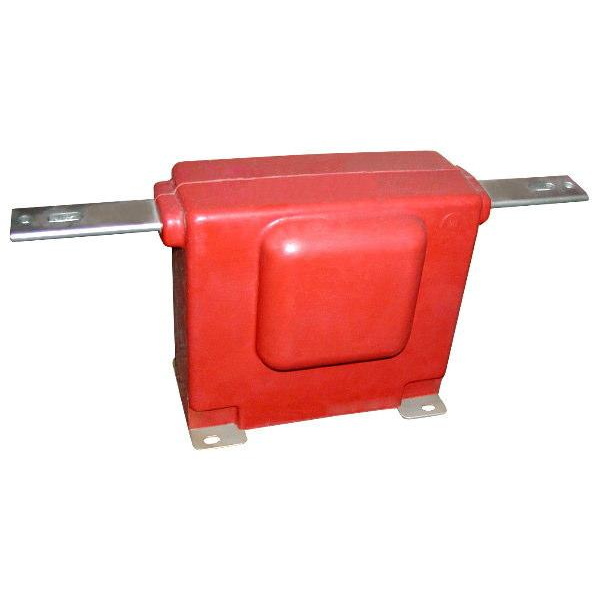

CTWH5-B-110-T200-401 ITI

Model CTWH5-B 400:5A Ratio CT, T200 Relay Class, ITI

5,053.03 5053.03 USD 5,053.03

5,053.03

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:
  • Metering and relaying.
FREQUENCY:
  • 50-400 Hz.
MAXIMUM SYSTEM VOLTAGE:
  • 15.5kV, BIL 110kV.
CONTINUOUS THERMAL CURRENT RATING FACTOR:
  • 5:5 to 600:5 - 1.50 at 30°C amb., 1.33 at 55°C. amb.
  • 800:5 and over - 1.00 at 30°C amb., 0.8 at 55°C. amb.

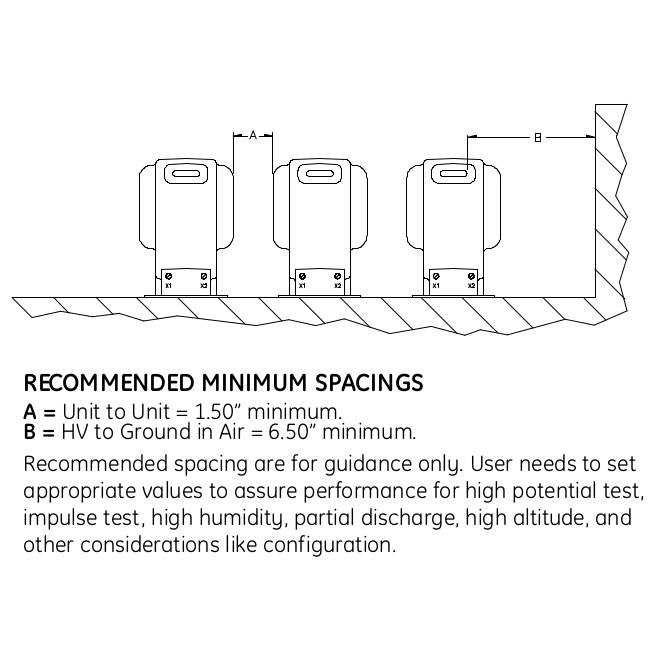

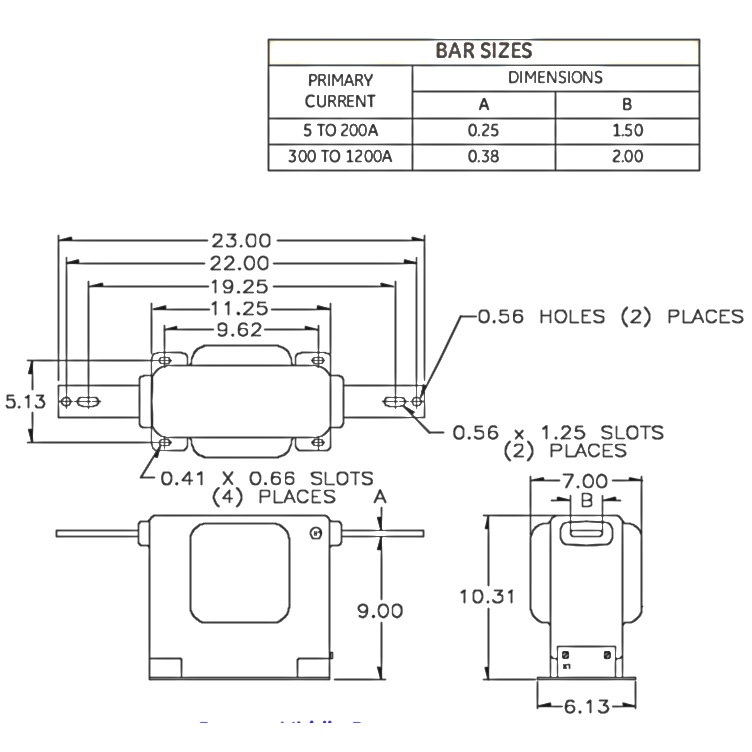

Primary terminals are plated copper bars. See chart for sizes.
Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.
Vacuum cast in polyurethane resin.
Approximate weight 76 lbs.

Specifications

Brand Instrument Transformers Inc
Model CTWH5-B
Input Range 0-400AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
CT Ratio 400:5A
CT Continuous Thermal Rating Factor 1.5 at 30°C amb., 1.33 at 55°C amb.
CT Relay Class T200
Insulation Level 15.5kV, 110kV BIL full wave
Tariff Code 8504.31.4065
ECCN EAR99
