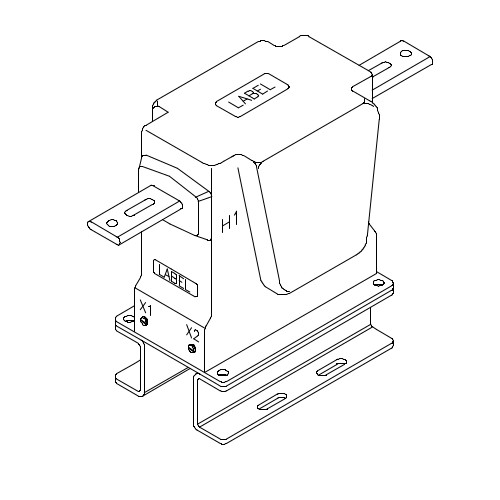

CTWH4-75-T100-501 ITI

Model CTWH4 500:5A Ratio CT, T100 Relay Class, ITI

$ 4,414.32 4414.32 USD $ 4,414.32

$ 4,414.32

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Relay Class

This combination does not exist.

Add to cart

APPLICATION:

Metering and relaying

FREQUENCY:

50-400 Hz.

MAXIMUM SYSTEM VOLTAGE:

9.52kV, BIL 75kV.

CONTINUOUS THERMAL CURRENT RATING FACTOR

250:5 and 1000:5-
1.10at 30°C. amb., 0.85 at 55°C. amb.

Primary terminals are plated copper bar. See datasheet for sizes. Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.
Vacuum cast in polyurethane resin.
Other ratios, secondary currents and dual ratios are available.
Approximate weight 42 lbs.

Specifications

Product
Brand	Instrument Transformers Inc
Model	CTWH4
Input Range	0-500AAC
Input Frequency	60Hz
Accuracy	0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output	0-5AAC
Tariff Code	8504.31.4065
ECCN	EAR99
Insulation Level	9.52kV, 75kV BIL full wave

Current Transformers
CT Continuous Thermal Rating Factor	1.1 at 30°C amb., 0.85 at 55°C amb.
CT Ratio	500:5A
CT Relay Class	T100
