CTWH4-75-T100-251 ITI

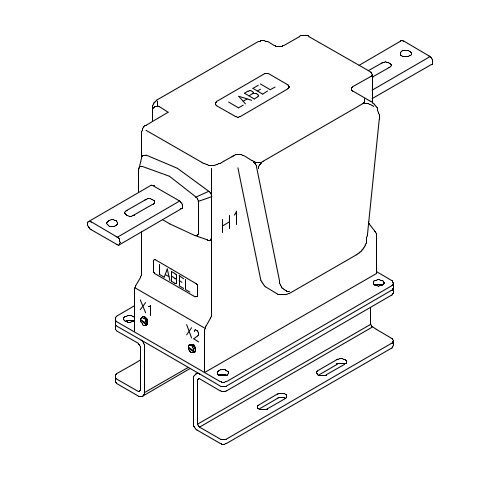

Model CTWH4 250:5A Ratio CT, 9.52KV, 75KV BIL, ITI

3,493.26 3493.26 USD 3,493.26

3,493.26

  • Brand
  • CT Relay Class
  • Input Range
  • Model
  • Output
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:
  • Metering and relaying
FREQUENCY:
  • 50-400 Hz.
MAXIMUM SYSTEM VOLTAGE:
  • 9.52kV, BIL 75kV.
CONTINUOUS THERMAL CURRENT RATING FACTOR

250:5 and 1000:5-
1.10at 30°C. amb., 0.85 at 55°C. amb.

Primary terminals are plated copper bar. See datasheet for sizes. Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.
Vacuum cast in polyurethane resin.
Other ratios, secondary currents and dual ratios are available.
Approximate weight 42 lbs.

Specifications

Brand Instrument Transformers Inc
CT Relay Class T100
Input Range 0-250AAC
Model CTWH4
Output 0-5AAC
Tariff Code 8504.31.4065
ECCN EAR99
