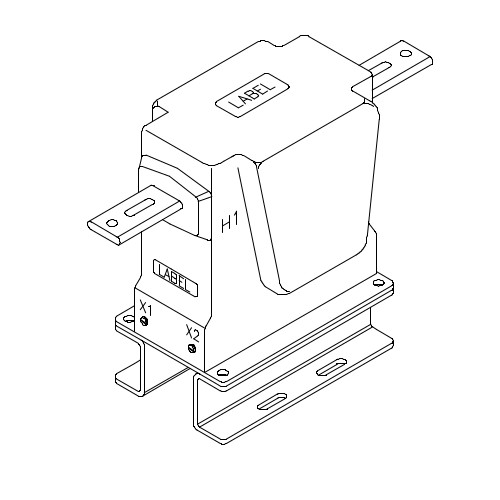

CTWH4-75-T100-151 ITI

Model CTWH4 150:5A Ratio CT, 9.52KV, 75KV BIL, ITI

$ 3,840.29 3840.29 USD $ 3,840.29

$ 3,840.29

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:
  • Metering and relaying
FREQUENCY:
  • 50-400 Hz.
MAXIMUM SYSTEM VOLTAGE:
  • 9.52kV, BIL 75kV.
CONTINUOUS THERMAL CURRENT RATING FACTOR

5:5 - 200:5
1.50 at 30°C amb., 1.33 at 55°C amb.

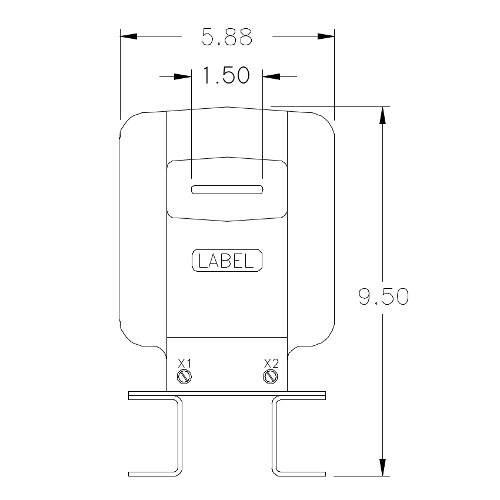

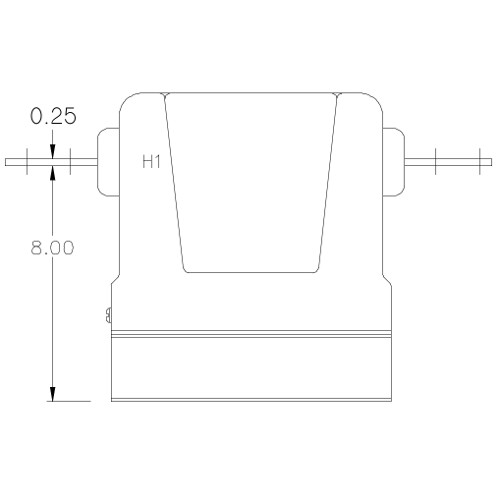

Primary terminals are plated copper bar. See datasheet for sizes. Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.
Vacuum cast in polyurethane resin.
Other ratios, secondary currents and dual ratios are available.
Approximate weight 42 lbs.

Specifications

Brand Instrument Transformers Inc
Model CTWH4
Input Range 0-150AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
CT Ratio 150:5A
CT Continuous Thermal Rating Factor 1.5 at 30°C amb., 1.33 at 55°C amb.
CT Relay Class T100
Insulation Level 9.52kV, 75kV BIL full wave
Tariff Code 8504.31.4065
ECCN EAR99
