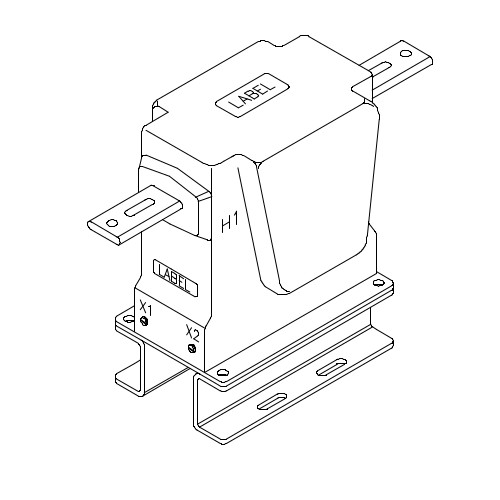

Model CTWH4 100:5A Ratio CT, T100 Relay Class, ITI

3,638.18 3638.1800000000003 USD 3,638.18

3,638.18

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class

This combination does not exist.

APPLICATION:
  • Metering and relaying
FREQUENCY:
  • 50-400 Hz.
MAXIMUM SYSTEM VOLTAGE:
  • 9.52kV, BIL 75kV.
CONTINUOUS THERMAL CURRENT RATING FACTOR

5:5 - 200:5
1.50 at 30°C amb., 1.33 at 55°C amb.

Primary terminals are plated copper bar. See datasheet for sizes. Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.
Vacuum cast in polyurethane resin.
Other ratios, secondary currents and dual ratios are available.
Approximate weight 42 lbs.

Specifications

Product
Brand Instrument Transformers Inc
Model CTWH4
Input Range 0-100AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
Tariff Code 8504.31.4065
ECCN EAR99
Insulation Level 9.52kV, 75kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 1.5 at 30°C amb., 1.33 at 55°C amb.
CT Ratio 100:5A
CT Relay Class T100
