MODEL 76SFT
CURRENT TRANSFORMERS
Key Features
- Frequency: 50-400Hz
- Insulation level: 600 Volts 10 kV BIL full wave
- Window Diameter: 3"
- Approximate Weight: 1.5 lbs

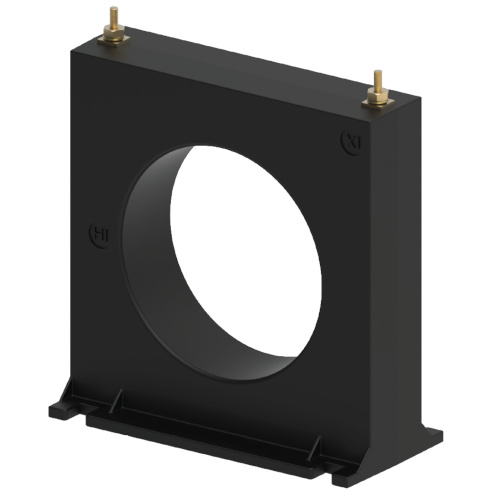

TE Connectivity’s (TE) Crompton Instruments range of ANSI current transformers provide cost-effective and accurate measurement of the primary current. The extensive portfolio measures a wide range of primary currents with apertures to suit most conductor sizes. The Model 76SFT current transformer is available in moulded case with foot mounting:
– Terminals are brass studs number 8-32 UNC with one fl at washer, lock washer and regular nut.
Model 76SFL is also available with leads instead of brass studs:
– Flexible leads are UL 1015 C, CSA approved #16 AWG, 24 inches long.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Product | |
|---|---|
| Brand | Crompton |
| Model | 76 |
| Input Range | 0-300AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.3900 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 6.0VA |
| CT Ratio | 300:5A |
| CT Window | 3.00" Diameter |
