Model 6RL (2.06 inch window diameter and a thin round case with 24 inch leads)
APPLICATION: Metering
FREQUENCY: 50 - 400Hz
INSULATION LEVEL: 600 Volts, 10kv BIL Full Wave
STANDARDS: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- Flexible leads available for all case configurations. Flexible leads are UL 1015 105 ̊C, C.S.A approved
#16 AWG, 24” long standard length. Non-standard lengths can be quoted upon request. - Non-standard lengths can be specified.

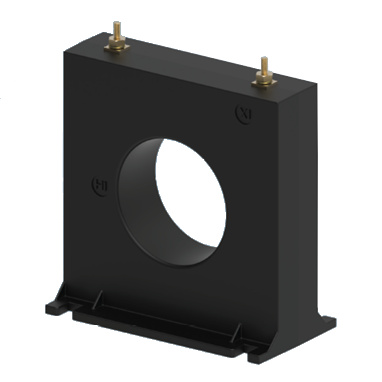

- Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut.
- SFT and SHT case styles also available as SFL and SHL with leads.
- Mounting bracket kits for the Model 6SHT or 6SHL are available when required.
- Approximate weight: 1.2 lbs.
Specifications
| Product | |
|---|---|
| Brand | Crompton |
| Model | 6 |
| Input Range | 0-200AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.3900 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 5.0VA |
| CT Ratio | 200:5A |
| CT Window | 2.06" Diameter |
