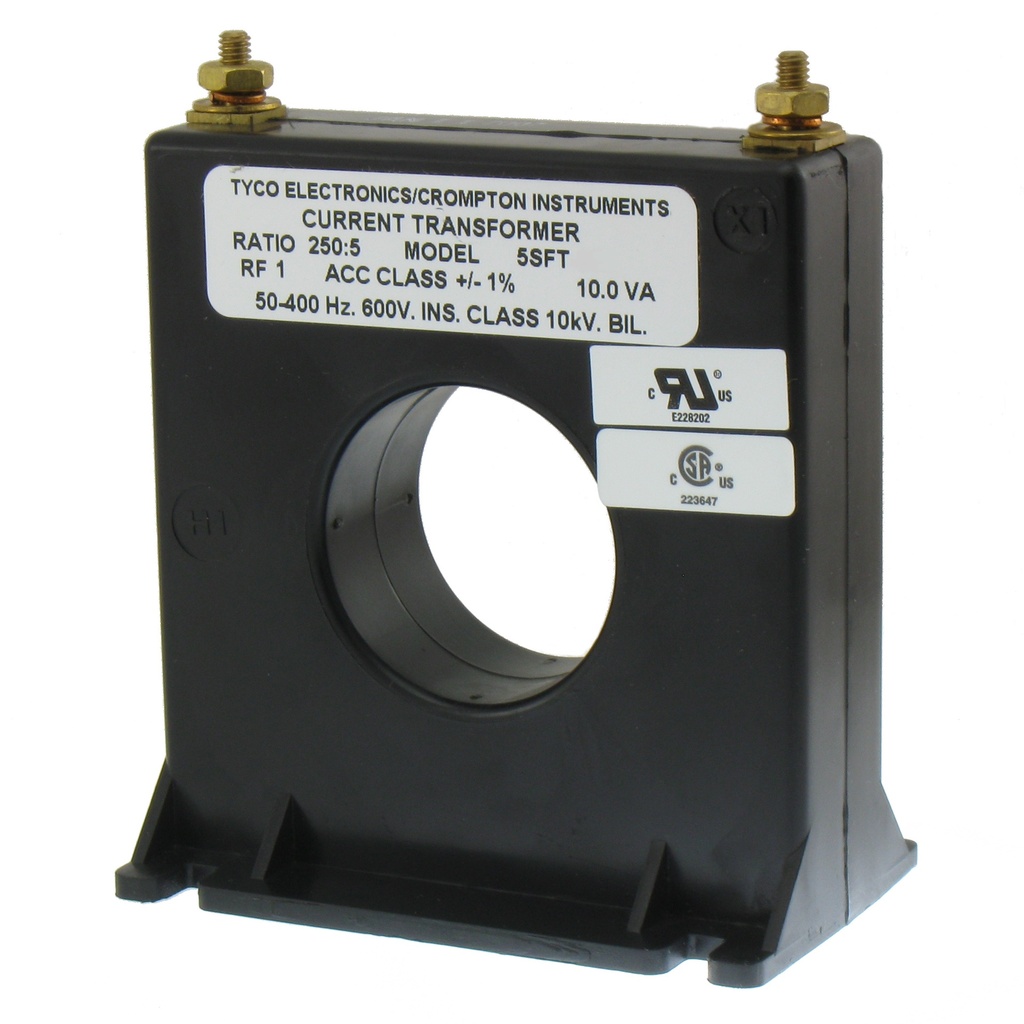

APPLICATION:
- With ammeters, wattmeters and cross current compensation.
FREQUENCY:
- 50-400 Hz.
INSULATION LEVEL:
- 600 Volts, 10 kV BIL full wave.
APPROXIMATE WEIGHT:
- 1.0 lbs.
CONNECTIONS
- Flexible Leads are UL 1015 105°C, CSA approved #16 AWG, 24" long
- Non-standard length to be specified
- Terminals are brass studs No. 8-32 UNC with one flat washer, lockwasher, and regular nut
- SHT and SFT case styles also available as SHL or SFL with Leads
- Mounting bracket for Model 5SHT (5SHT-KIT)
Specifications
| Product | |
|---|---|
| Brand | Crompton |
| Model | 5 |
| Input Range | 0-250AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class |
| Output | 0-5AAC |
| Tariff Code | 8504.31.3900 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 10.0VA |
| CT Ratio | 250:5A |
| CT Window | 1.56" Diameter |
