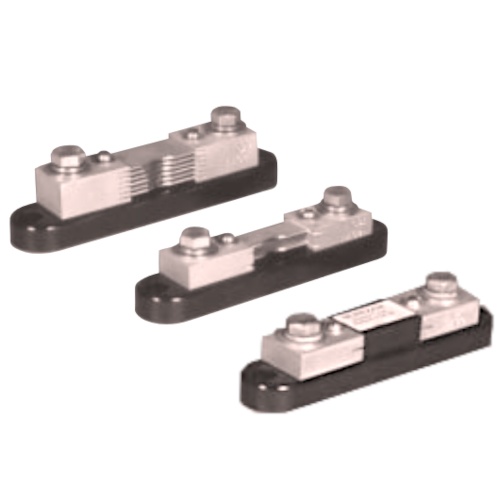

The type C switchboard shunts have an insulating base and can be mounted on conductive surfaces. Available in ranges of 1 Ampere through 500 Amperes with a 50mV output and 1 Ampere through 500 Ampere with a 100mV output, the type C is designed for power cable hook-up or bus-bar mount utilizing the 3/8-16 brass SEMS screws with a captive split-lockwasher and flat washer. This popular design is available without the insulating base if desired. Low Amperage models are furnished with a protective cover to prevent damage to the Manganin element.
Note:
For continuous operation, it is recommended that shunts not run at more than two thirds (2/3) the rated current under normal conditions of use as per AIEEE standards.
Dimensions
- A = 1.75"
- B = 0.75"
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Product | |
|---|---|
| Brand | Canadian Shunt |
| Model | C |
| Input Range | 0-500A |
| Output | 0-50mV |
| Tariff Code | 8533.29.0000 |
| ECCN | EAR99 |
| Accuracy | 0.25% Class |
| Current Shunt | |
|---|---|
| Shunt Resistance | 100 µΩ (0.0001 Ohms) |
