Model C 500 Ampere 100 Millivolt Shunt, Canadian Shunt

45.26 45.26 USD 45.26

45.26

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Shunt Resistance
  • Accuracy

This combination does not exist.

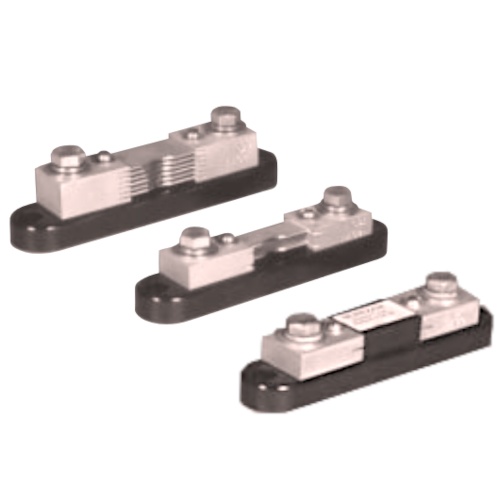

The type C switchboard shunts have an insulating base and can be mounted on conductive surfaces. Available in ranges of 1 Ampere through 500 Amperes with a 50mV output and 1 Ampere through 500 Ampere with a 100mV output, the type C is designed for power cable hook-up or bus-bar mount utilizing the 3/8-16 brass SEMS screws with a captive split-lockwasher and flat washer. This popular design is available without the insulating base if desired.  Low Amperage models are furnished with a protective cover to prevent damage to the Manganin element.

Note: For continuous operation, it is recommended that shunts not run at more than two thirds (2/3) the rated current under normal conditions of use as per AIEEE standards.

Dimensions

  • A = 1.75"
  • B = 0.75"

Specifications

Product
Brand Canadian Shunt
Model C
Input Range 0-500A
Output 0-100mV
Tariff Code 8533.29.0000
ECCN EAR99
Accuracy 0.25% Class
Current Shunt
Shunt Resistance 200 µΩ (0.0002 Ohms)
