APPLICATION: High Current, High Fault, Generator Applications
FREQUENCY: 60 Hz.
INSULATION LEVEL: 600 Volts, 10 kV BIL full wave.
THERMAL RATING FACTOR: 2.0 at 30 C
CONSTRUCTION: Core and coil are encapsulated in polyurethane resin.
Terminals are #10-32 screws
Terminal housing is corrosion resistant and weather-proof 1" NPT threaded conduit termination box with cover and gasket.
Meets IEEE 57.13 and IEC 60044-1 standards
Standard 0.3% accuracy.
Ground shields kit 1221B27396-12 sold separately.

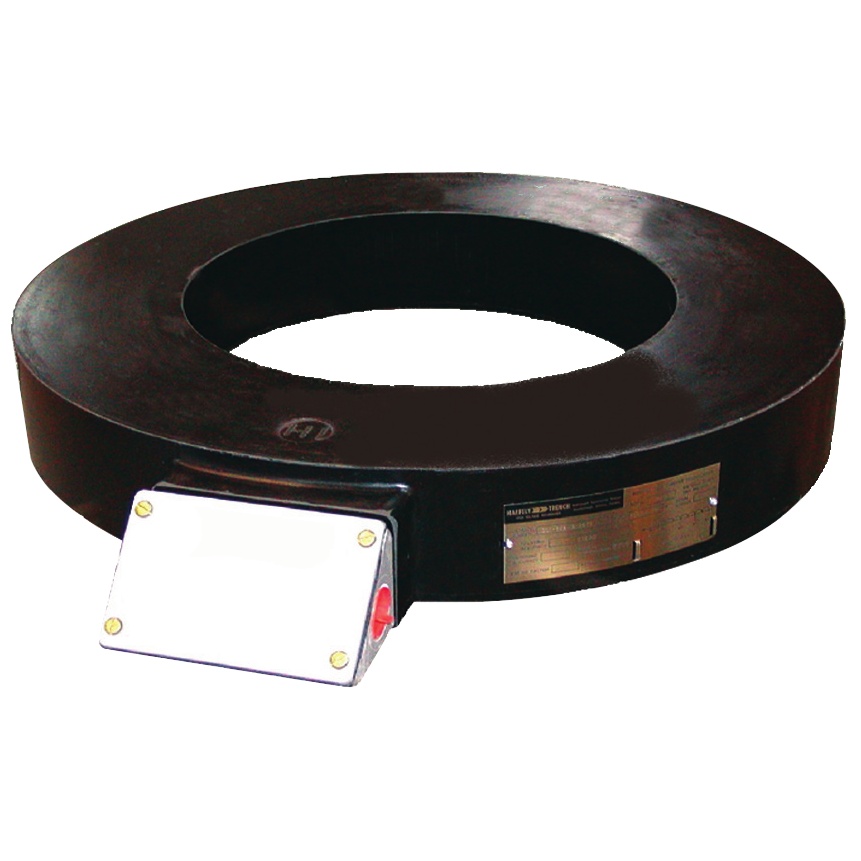

Multi-ratio Current Transformer
Mounting Clamps included.
Approximate weight 385 bs.
Install over high voltage bushings through 800kV
Specifications
| Product | |
|---|---|
| Brand | Instrument Transformers Inc |
| Model | BO7 |
| Input Range | 0-600AAC, 0-100AAC, 0-50AAC, 0-150AAC, 0-200AAC, 0-250AAC, 0-300AAC, 0-400AAC, 0-450AAC, 0-500AAC |
| Input Frequency | 60Hz |
| Output | 0-5AAC |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
| Current Transformers | |
|---|---|
| CT Ratio | Multi-Ratio |
| CT Relay Class | C800 |

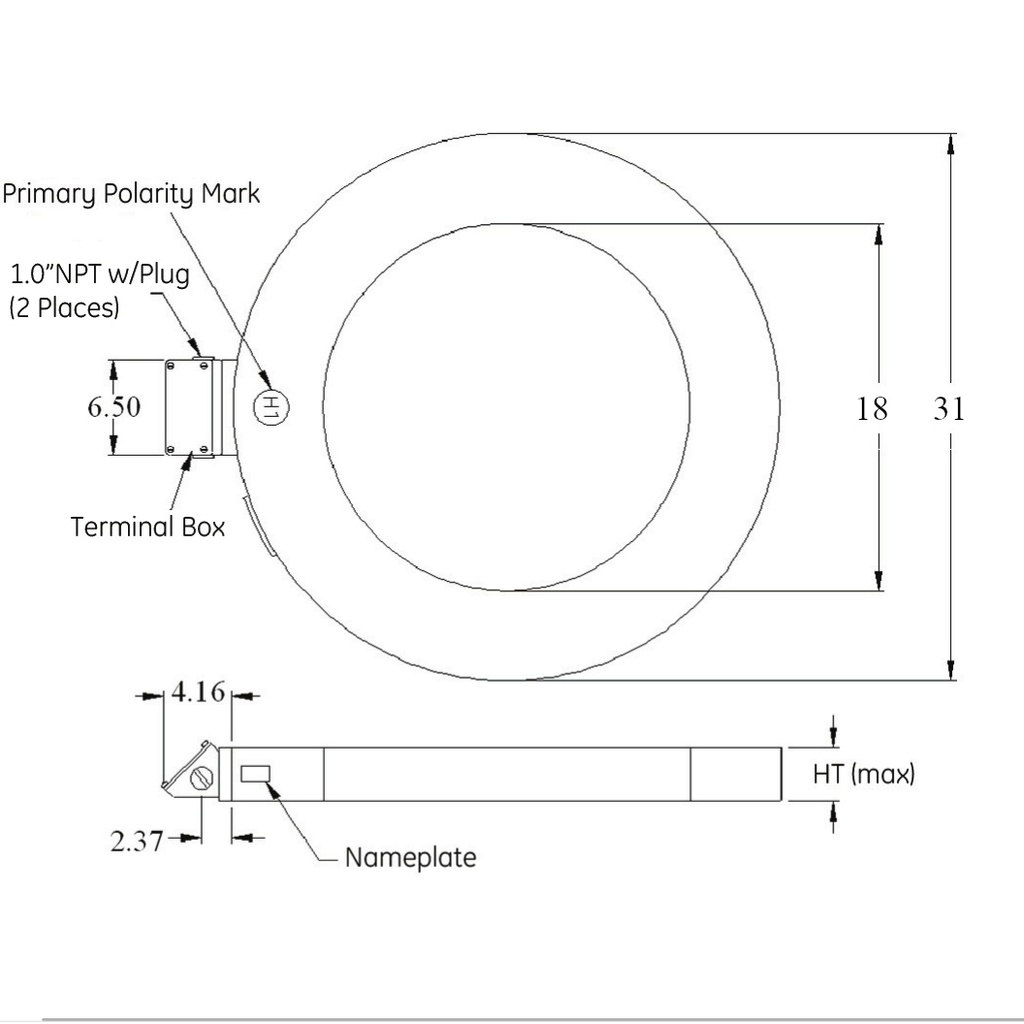

| CT Window | 18" Diameter |
