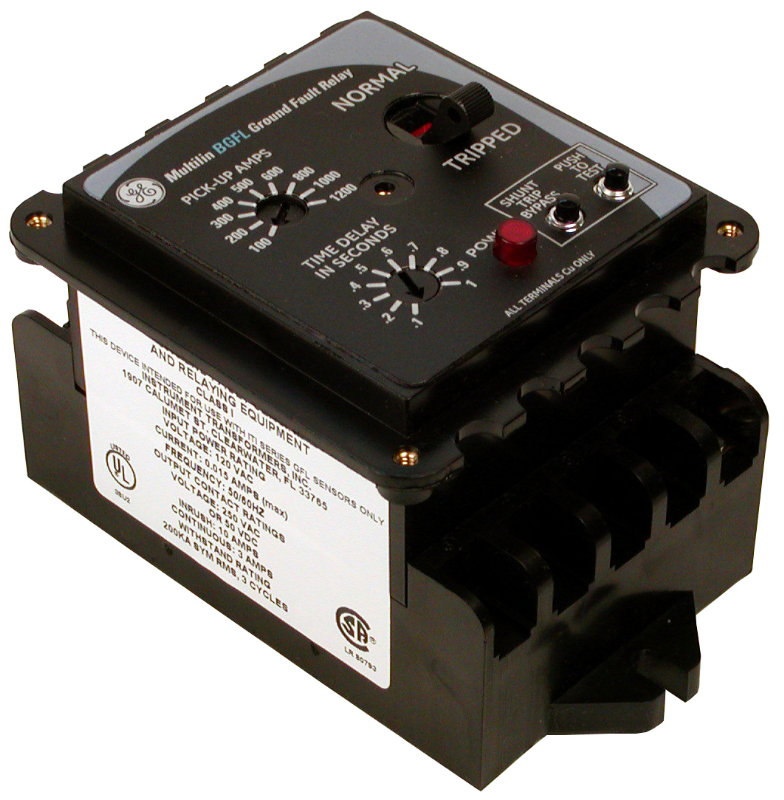

BGFL159-1200 ITI

Model BGFL (Relay)

OPERATING RANGE:

• Time delay from 0.10 to 1 second. (Adjustable)
• Trip currents of 100-1200A. (-1200 Variants)


INPUT POWER:

• 2 VA plus shunt coil requirements. Rated @ 120 Vac.

INPUT WITHSTAND:

• 200,000 Amperes RMS for 3 cycles, 50/60 Hz.

NOMINAL INPUT VOLTAGE:

• 120 Volts ac, 50/60Hz

FREQUENCY:

• 50/60 Hz.

AMBIENT TEMPERATURE RANGE:

• -30°C to +60°C

Only for use with GFL sensors.
Approximate weight 1.5 lbs.

These Class 1 Model BGFL Ground Fault Relays and Sensors are designed to form a system for detecting a ground fault current on a ground ac power system. When a ground fault exceeds a pre-selected Current level and Time Delay setting, the relay initiates a trip signal for a shunt trip disconnect device to open and clear the fault . This BGFL system is designed to provide protection for electrical equipment, not protection for personnel.

• Meets NEC service entrance equipment standards.
• Available in three basic styles, “Standard”, “Form C”, or “Zone Interlocking” for coordination of single or multiple ground fault devices in system.
• Integral test panel with Push To Test and Shunt Trip Bypass pushing for ease in proper operational testing of the system, with or without tripping the protective device.

• “Power On” LED indicator in cover.
• Positive visual trip indicator, manual reset .
• Infinitely adjustable Time Delay.
• Discrete current threshold adjustment.

• Panel or door mounting.
• Rear terminal kit and clear plastic cover standard with door mounting.
• Electromechanical relay output , positive “ON” and “OFF”.
• Operates with molded case and power circuit breakers, bolted pressure switches, fusible disconnect switches.

CONTACT RATING: (120VAC Variants)

• Inrush: 10A
• Cont.: 3A
