B-1000-50

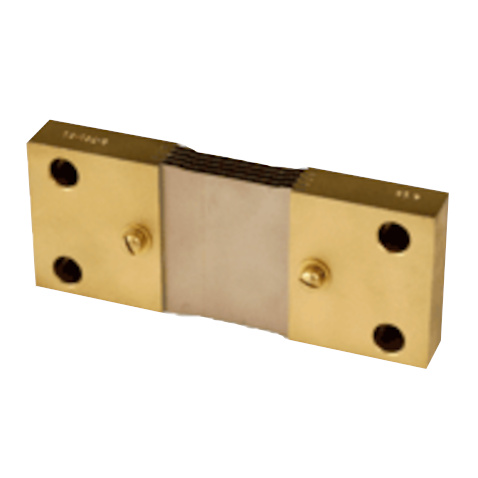

Model B 1000 Ampere 50 Millivolt Shunt, Empro

133.32 133.32 USD 133.32

133.32

  • Brand
  • Model
  • Input Range
  • Output
  • Shunt Resistance
  • Tariff Code
  • ECCN

This combination does not exist.

The Empro type B shunts are available in ratings from 300 through 1200 amps in either 50mV and 100mV outputs. The type B shunt is similar to the type A; only larger and can handle more current.  The type B shunt can be used in a busbar or cable application.

Dimensions

A: 5.875"  (149.23mm)
B: 2.500"  (63.5mm)
C: 1.000"  (25.4mm)
D: 4.75"  (120.65mm)
E: 7/16"    (11.11mm)
F: 1.500"  (38.1mm)
G: 0.500" (12.7mm)

Specifications

Brand Empro
Model B
Input Range 0-1000A
Output 0-50mV
Shunt Resistance 50 µΩ (0.00005 Ohms)
Tariff Code 8533.29.0000
ECCN EAR99
