APM-RATE-MAK

Model MAK 0-60kHz NPN or PNP or Push-Pull, 12-24V AC/DC Powered, 72mm DIN Bear Series, Simpson Electric

129.58 129.58 USD 129.58

129.58

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Frequency
  • Accuracy
  • Output
  • Output
  • Aux. Power Supply
  • Tariff Code
  • ECCN

This combination does not exist.

Bear Rate Meter

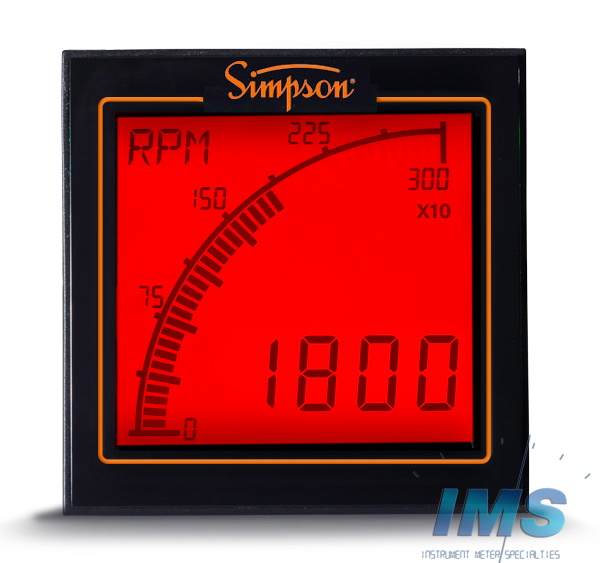

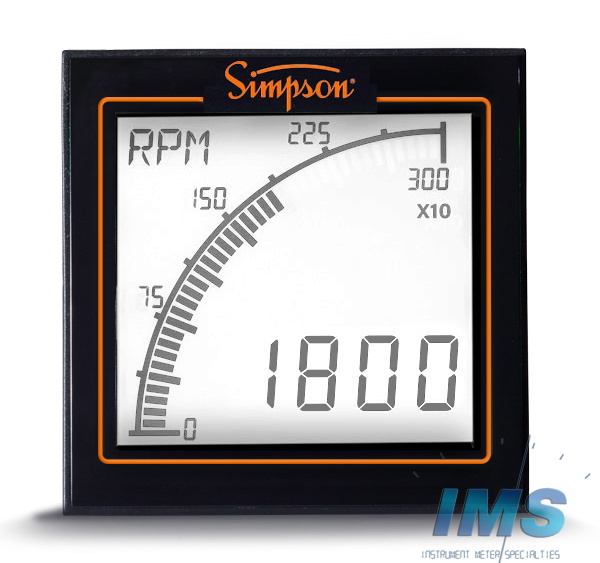

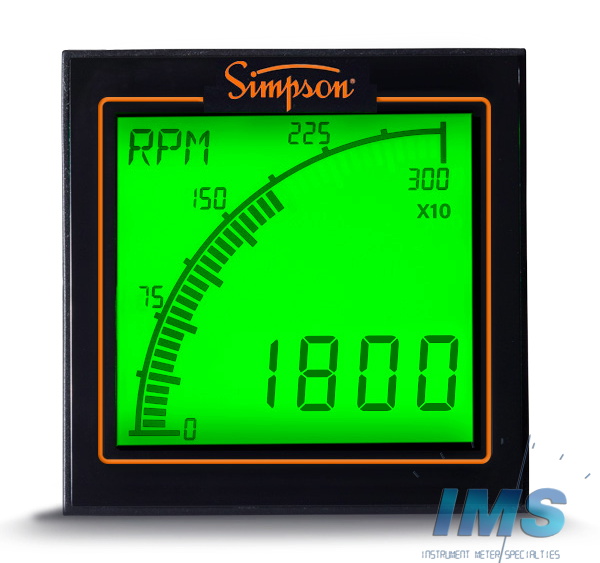

The MAK Rate Meter was developed for use in flow applications, production lines and motor speed monitoring. It combines the instant visual representation of an analog meter with the speed and accuracy of a digital meter. The unique display is viewable in most environmental conditions and features a programmable scale and color changing backlight for instant recognition and precision measurement.




Featuring an acclaimed easy-to-read display and a versatile set of inputs, the Process Meter takes the MAK into a wide range of new industrial applications.  The MAK improves safety and efficiency through user programmable alarm set-points, dynamic backlighting and starburst messaging that alerts operators of changing conditions instantly. It features digital and analog outputs to communicate with other components in a system, IP65 and NEMA type 4 and 12 ratings and an industry leading three-year warranty.


  • 12-24V AC/DC power supply

  • User-programmable 40 segment bar graph scale

  • Alarms to immediately alert operators when a parameter is out of range.

  • 4 character messaging area displays custom messages, alarms and annunciators.

  • Interface to other equipment using digital and analog outputs.

    • Output 1: Digital (open collector) or Analog (4-20mA),

    • Output 2: Digital (open collector) or Analog (4-20mA)

  • Positive LCD for use in bright conditions.

  • Accuracy: Up to 0.1%

  • Certifications: CE, RoHS, UL, NEMA Type 4 and 12

Datasheet

Specifications

Brand Simpson Electric
Series Bear
Model MAK

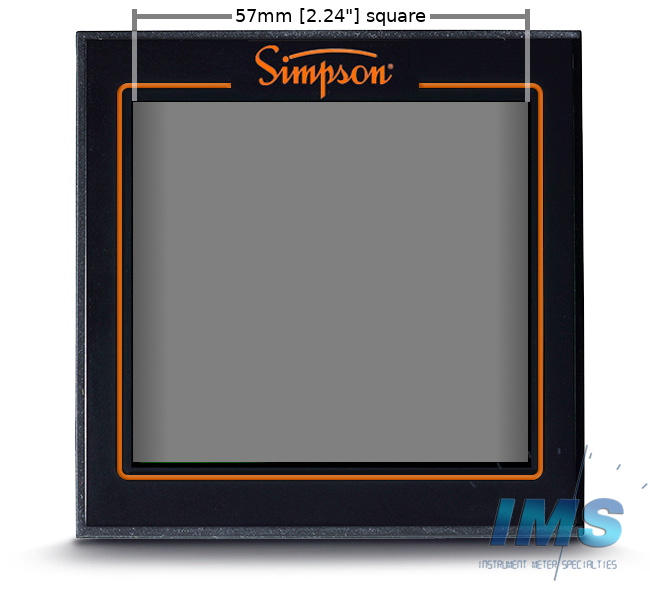

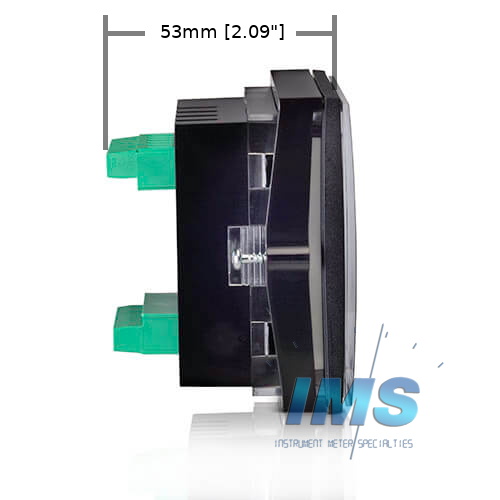

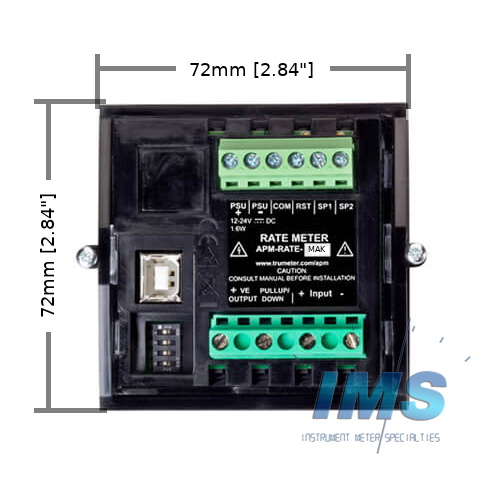

Form Factor 72x72mm 9/64 DIN
Input Range 0-60kHz, NPN Transistor Pulses, PNP Transistor Pulses, Push-Pull Pulses
Input Frequency Pulsed, Variable
Accuracy ±0.01% of Full Scale or 50ppm, whichever is greater
Output 4-20mADC, Open Collector
Aux. Power Supply Switching ~12-24VDC
Tariff Code 9030.33.0040
ECCN EAR99
