Bear Process Meter

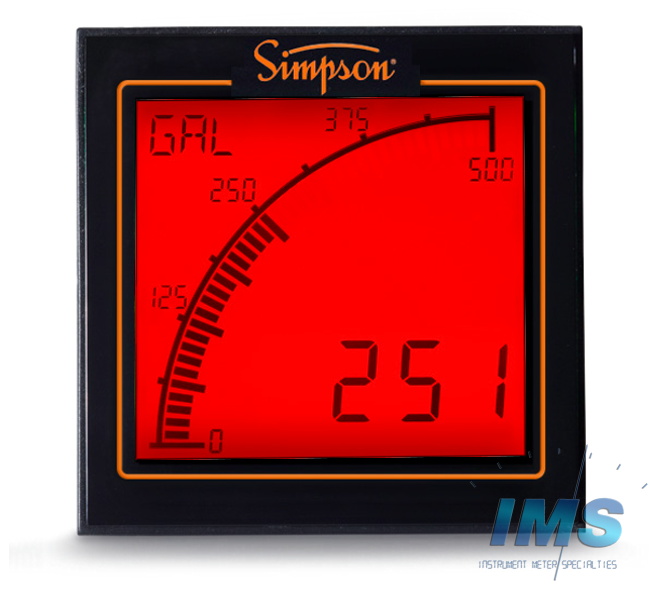

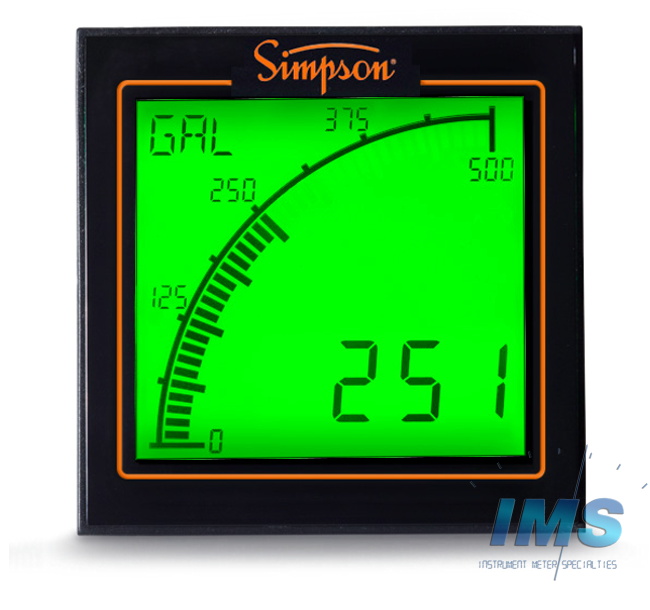

Featuring an acclaimed easy-to-read display and a versatile set of inputs, the Process Meter takes the MAK into a wide range of new industrial applications. The MAK improves safety and efficiency through user programmable alarm set-points, dynamic backlighting and starburst messaging that alerts operators of changing conditions instantly. It features digital and analog outputs to communicate with other components in a system, IP65 and NEMA type 4 and 12 ratings and an industry leading three-year warranty. Simpson’s innovative technology brings a greater level of accuracy to the MAK range through input signal optimization. By using this technology, accuracy of 0.1% or better is now achieved, allowing for more precise measurement, display and control. Non-linear sensors, such as thermocouples and pressure transducers, can also be used thanks to the configuration software that allows the user to configure up to 20 points in a non-linear conversion table.
12-24V AC/DC power supply
20 point non-linear conversion
User configurable to measure voltage, current or frequency via application.
User-programmable 40 segment bar graph scale
Alarms to immediately alert operators when a parameter is out of range.
4 character messaging area displays custom messages, alarms and annunciators.
Interface to other equipment using digital and analog outputs.
Output 1: Digital (open collector) or Analog (4-20mA)
Output 2: Digital (open collector) or Analog (4-20mA)

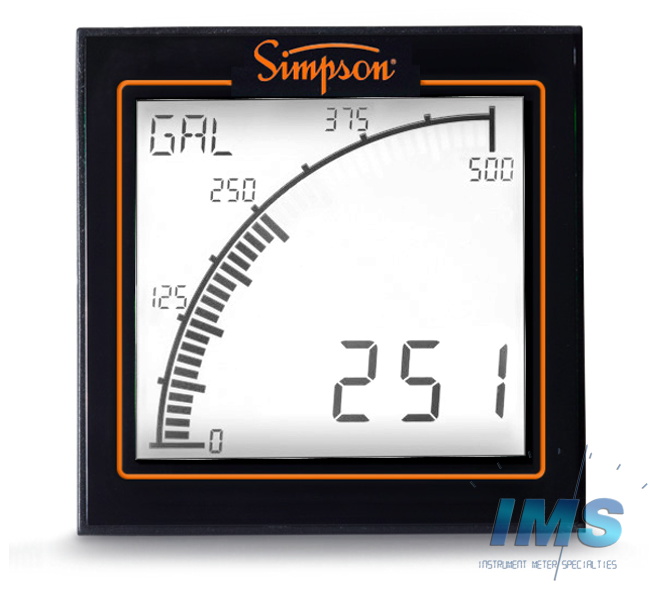

Positive LCD for use in bright conditions.
Accuracy: Up to 0.1% (Voltage) and 0.01% (Current)
Certifications: CE, RoHS, UL, NEMA Type 4 and 12
Specifications
| Brand | Simpson Electric |
| Series | Bear |
| Model | MAK |

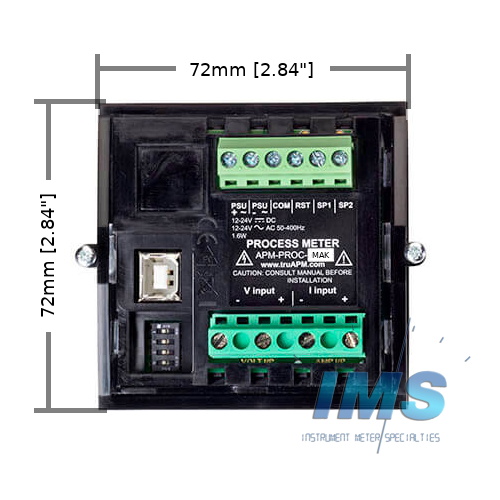

| Form Factor | 72x72mm 9/64 DIN |
| Input Range | 0-10VDC, 4-20mADC, 0-50mADC, 1-5VDC |
| Input Frequency | DC |
| Accuracy | ±0.1% of Reading or 5mV, ±0.01% of Reading or 5μA |
| Output | 4-20mADC, Open Collector |
| Aux. Power Supply | Switching ~12-24VDC |
| Tariff Code | 9030.33.0040 |
| ECCN | EAR99 |
