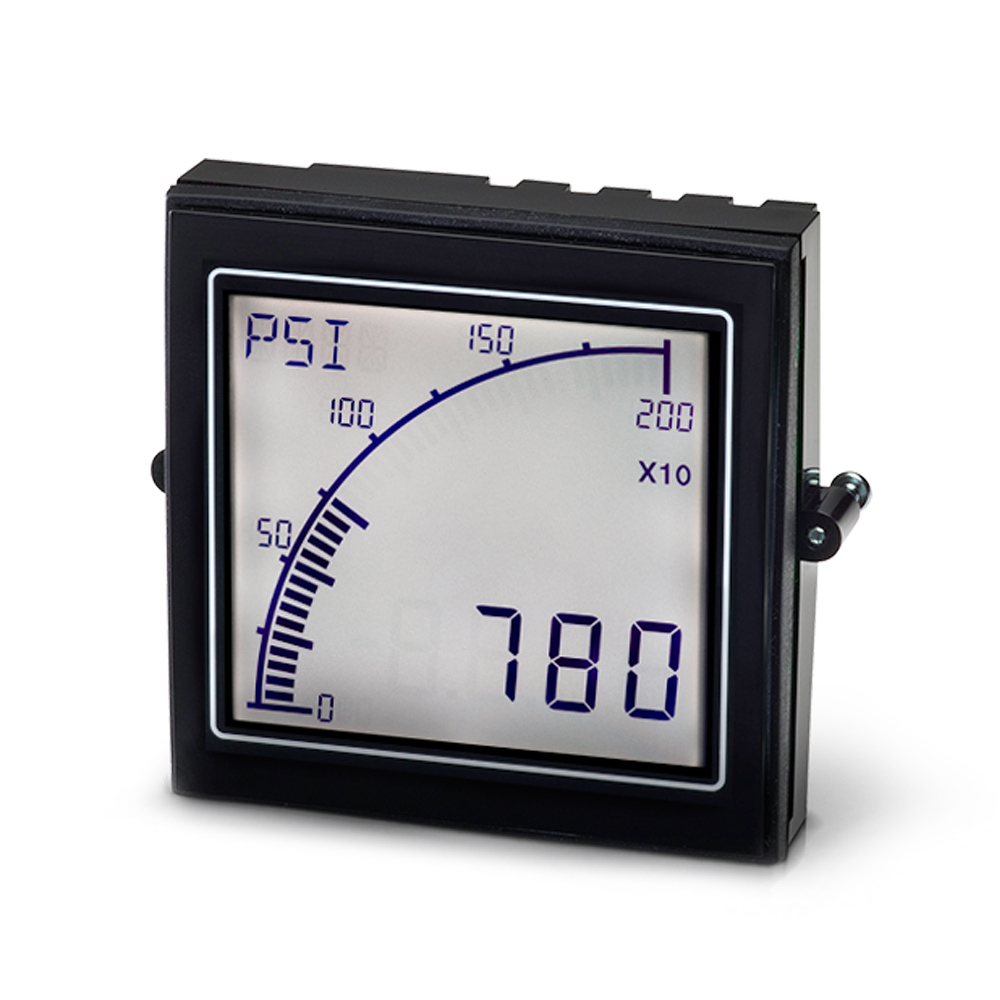

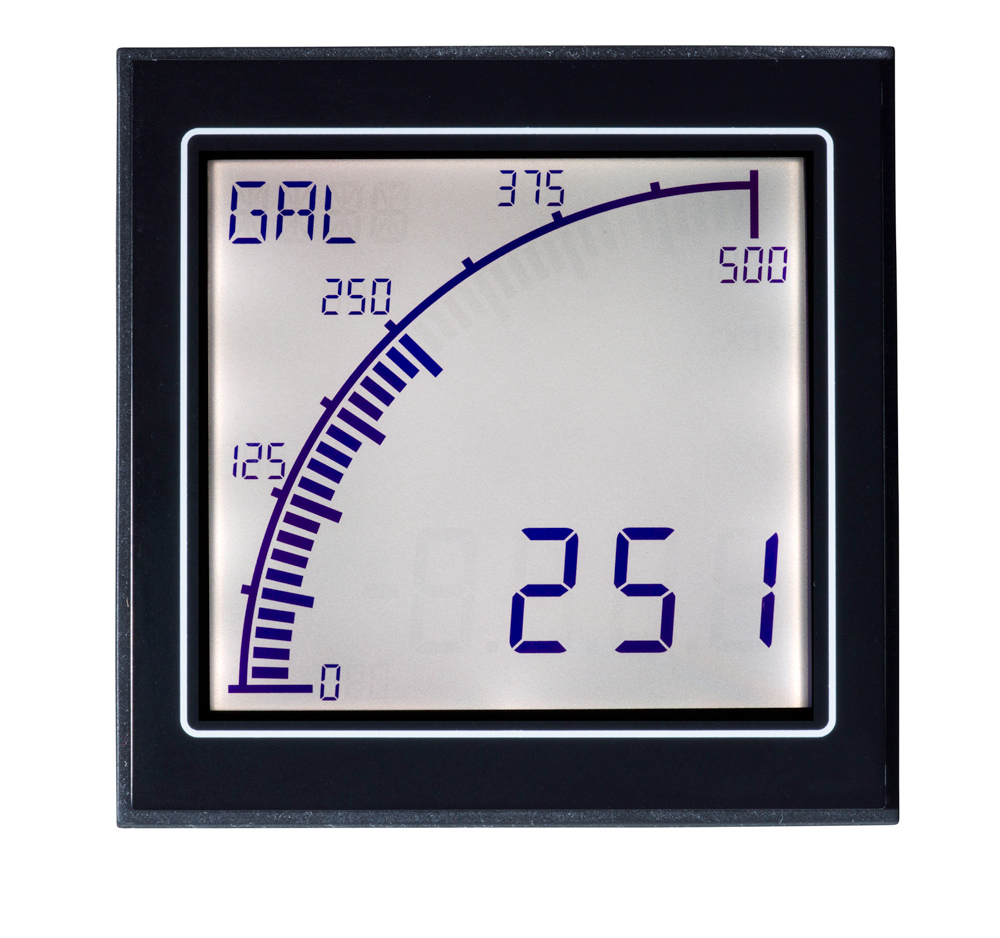

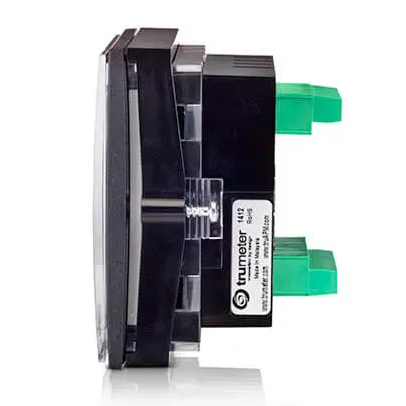

Process Meter
For a range of industrial applications
Featuring an acclaimed easy-to-read display and a versatile set of inputs, the Process Meter takes the APM into a wide range of new industrial applications.

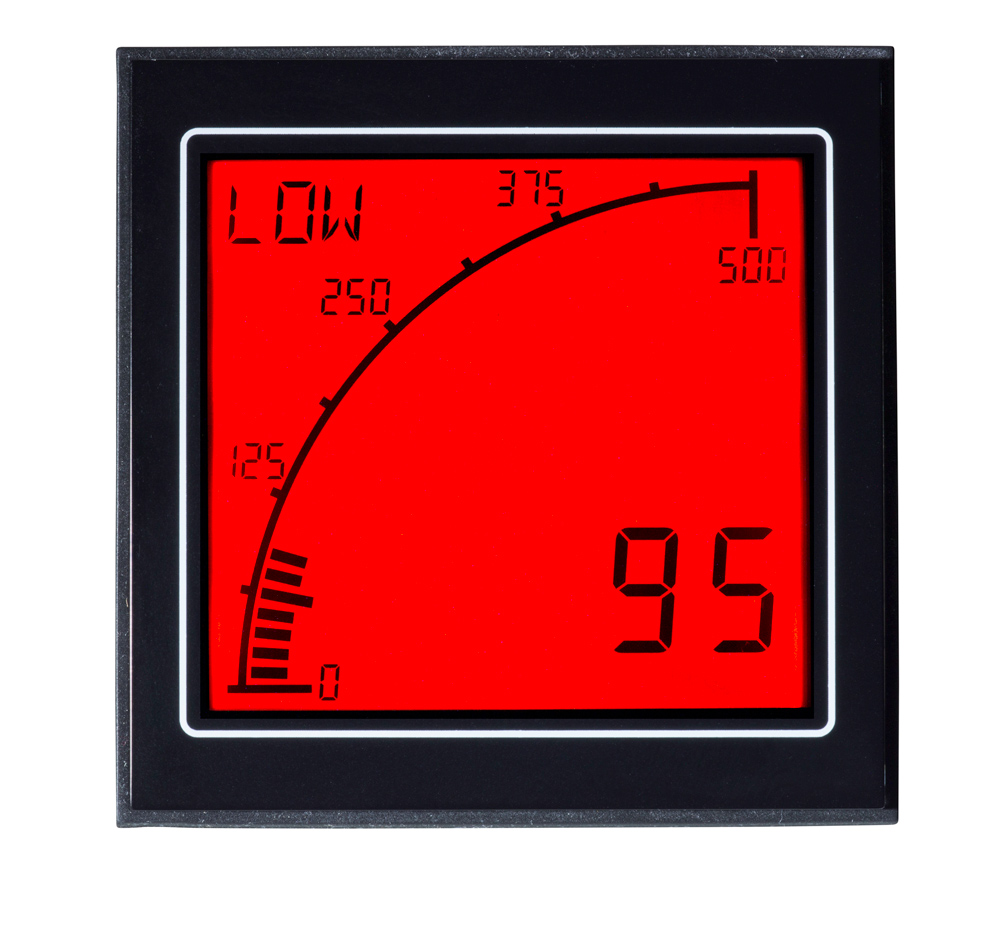

The programmable scale and custom annunciators mean users can tailor the meter to display their critical parameters exactly how they want, while the dynamic backlighting, in conjunction with setpoints, means operators are visually alerted when a parameter is out of range. The two outputs can be used to control other systems in the process, meaning the APM Process Meter is much more than just a display. Trumeter’s innovative technology brings a greater level of accuracy to the APM range through input signal optimization. By using this technology, accuracy of 0.1% or better is now achieved, allowing for more precise measurement, display and control. Non-linear sensors, such as thermocouples and pressure transducers, can also be used thanks to the new APM Configurator application that allows the user to configure up to 20 points in a non-linear conversion table.

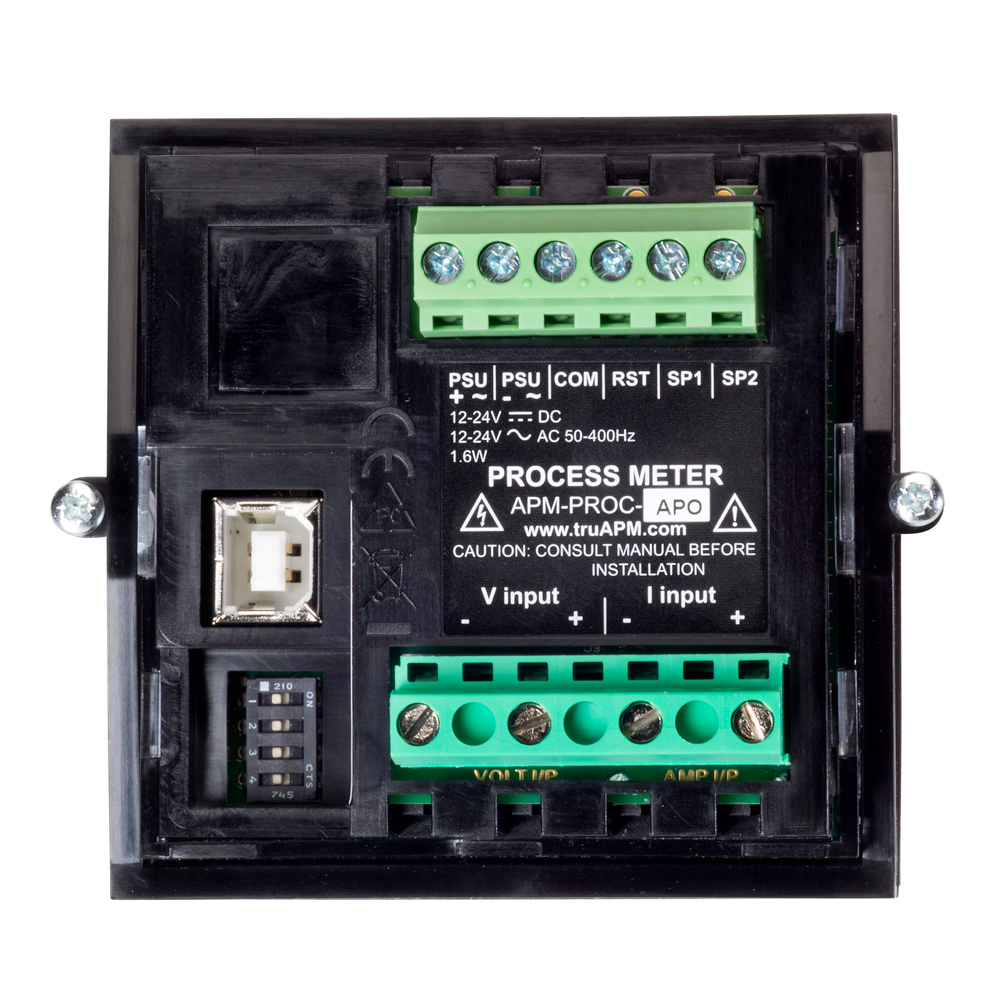

12-24V AC/DC power supply
20 point non-linear conversion
User configurable to measure voltage, current or frequency via application.

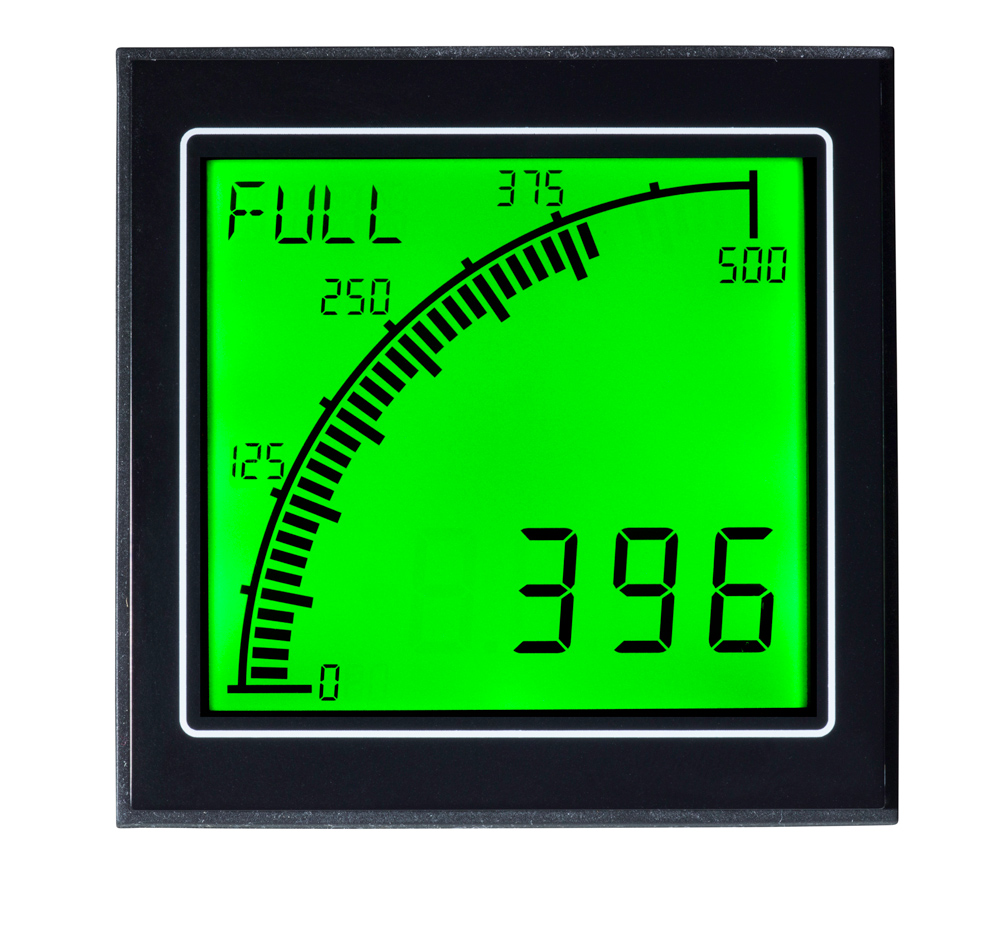

User-programmable 40 segment bar graph scale
Alarms to immediately alert operators when a parameter is out of range.
4 character messaging area displays custom messages, alarms and annunciators.
Interface to other equipment using digital and analog outputs.
Output 1: Digital (open collector) or Analog (4-20mA)
Output 2: Digital (open collector) or Analog (4-20mA)
Positive LCD for use in bright conditions.
Accuracy: Up to 0.1% (Voltage) and 0.01% (Current)
Certifications: CE, RoHS, UL, NEMA Type 4 and 12
Specifications
| Brand | trumeter |
| Series | APM |
| Model | Process |

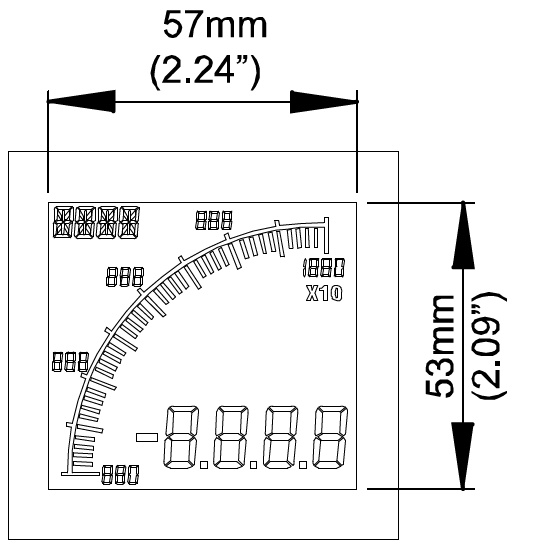

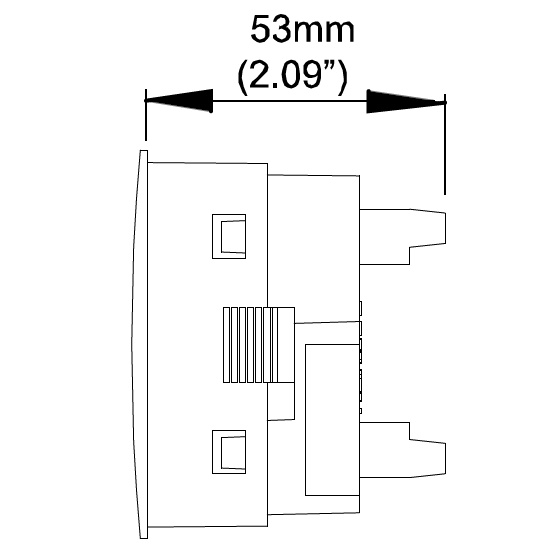

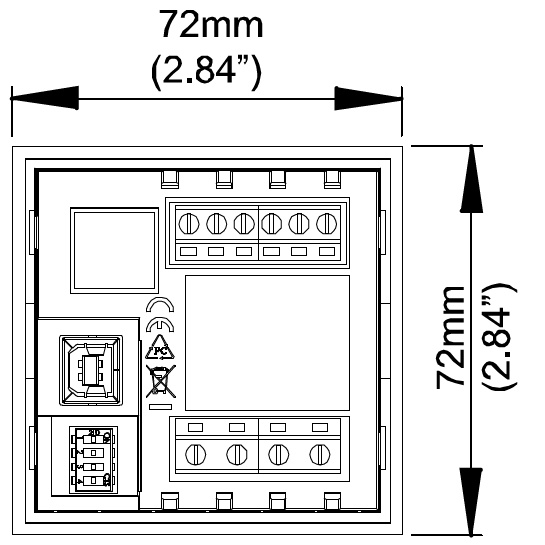

| Form Factor | 72x72mm 9/64 DIN |
| Input Range | 0-10VDC, 4-20mADC, 0-50mADC, 1-5VDC |
| Input Frequency | DC |
| Accuracy | ±0.1% of Reading or 5mV, ±0.01% of Reading or 5μA |
| Output | 4-20mADC, Open Collector |
| Aux. Power Supply | Switching ~12-24VDC |
| Tariff Code | 8531.20.0000 |
| ECCN | EAR99 |
