APM-M2-MAK

Model MAK 0-600V AC/DC, 0-5A AC/DC, or 2-400Hz, 100-240VAC Powered, 72mm DIN Bear Series, Simpson Electric

126.84 126.84 USD 126.84

126.84

  • Brand
  • Form Factor
  • Input Frequency
  • Input Frequency
  • Input Frequency
  • Input Frequency
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Model
  • Output
  • Output
  • Series
  • Tariff Code
  • ECCN

This combination does not exist.

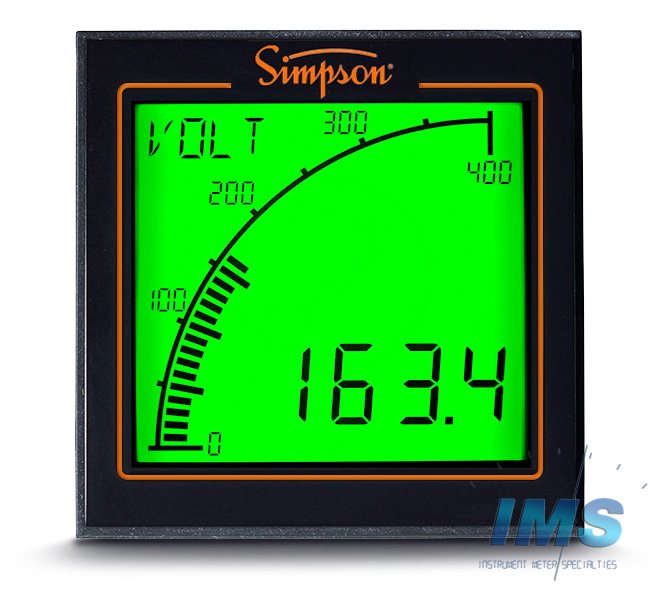

Bear AC Powered Meter

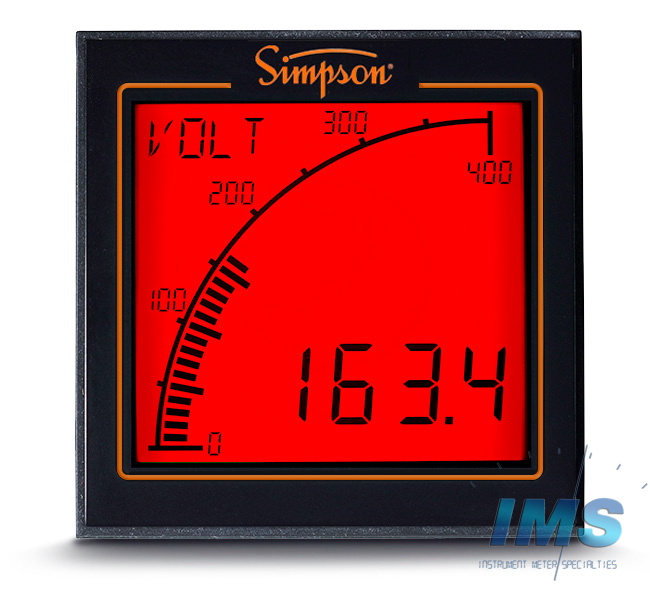

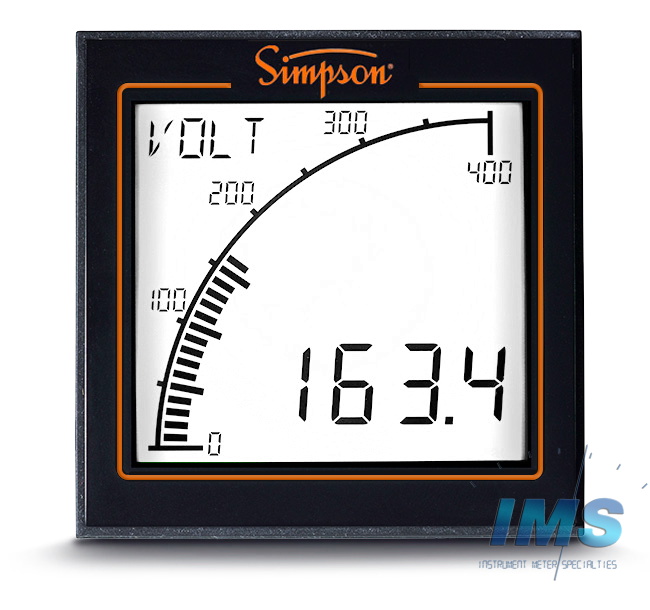

The MAK improves safety and efficiency through user programmable alarm set-points, dynamic backlighting and starburst messaging that alerts operators of changing conditions instantly. It features digital and analog outputs to communicate with other components in a system, IP65 and NEMA type 4 and 12 ratings and an industry leading three-year warranty.


  • Mains powered 100-240VAC - no additional power supply needed.

  • User configurable to measure voltage, current or frequency via application.

  • User-programmable 40 segment bar graph scale

  • Alarms to immediately alert operators when a parameter is out of range.

  • 4 character messaging area displays custom messages, alarms and annunciators.

  • Interface to other equipment using digital and analog outputs.

    • Output 1: Digital (open collector) or Analog (4-20mA)

    • Output 2: Digital (open collector) or Analog (4-20mA)

  • Positive LCD for use in bright conditions.

  • Accuracy: 1%

  • Certifications: CE, RoHS, UL, NEMA Type 4 and 12

Datasheet

Specifications

Brand Simpson Electric

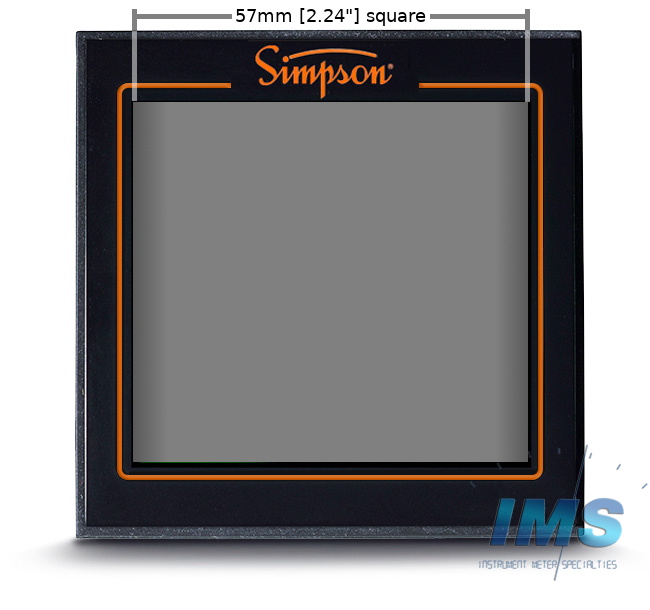

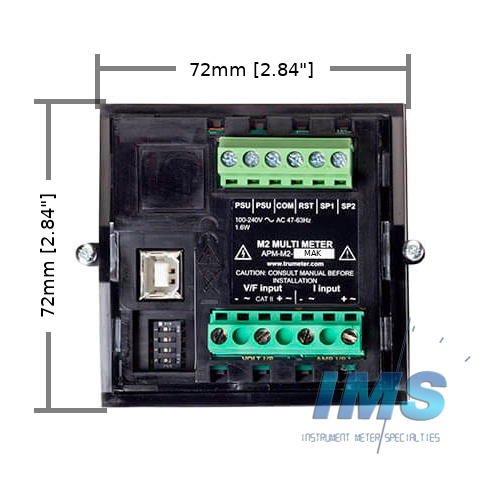

Form Factor 72x72mm 9/64 DIN
Input Frequency 50Hz, 60Hz, DC, 400Hz
Input Range 0-600VAC, 0-600VDC, 0-5AAC, 0-5ADC, 2-400Hz
Model MAK
Output 4-20mADC, Relay
Series Bear
Tariff Code 9030.33.0040
ECCN EAR99
