APM-M2-APO

https://www.metersales.com/web/image/product.template/72442/image_1920?unique=8275f53

Model APM 0-600V AC/DC, 0-5A AC/DC, or 2-400Hz, 100-240VAC Powered, 72mm DIN APM Series, Trumeter

141.01 141.01 USD 141.01

141.01

Not Available For Sale

  • Brand
  • Series
  • Model
  • Form Factor
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Range
  • Input Frequency
  • Input Frequency
  • Input Frequency
  • Input Frequency
  • Accuracy
  • Output
  • Output
  • Aux. Power Supply
  • Tariff Code
  • ECCN

This combination does not exist.

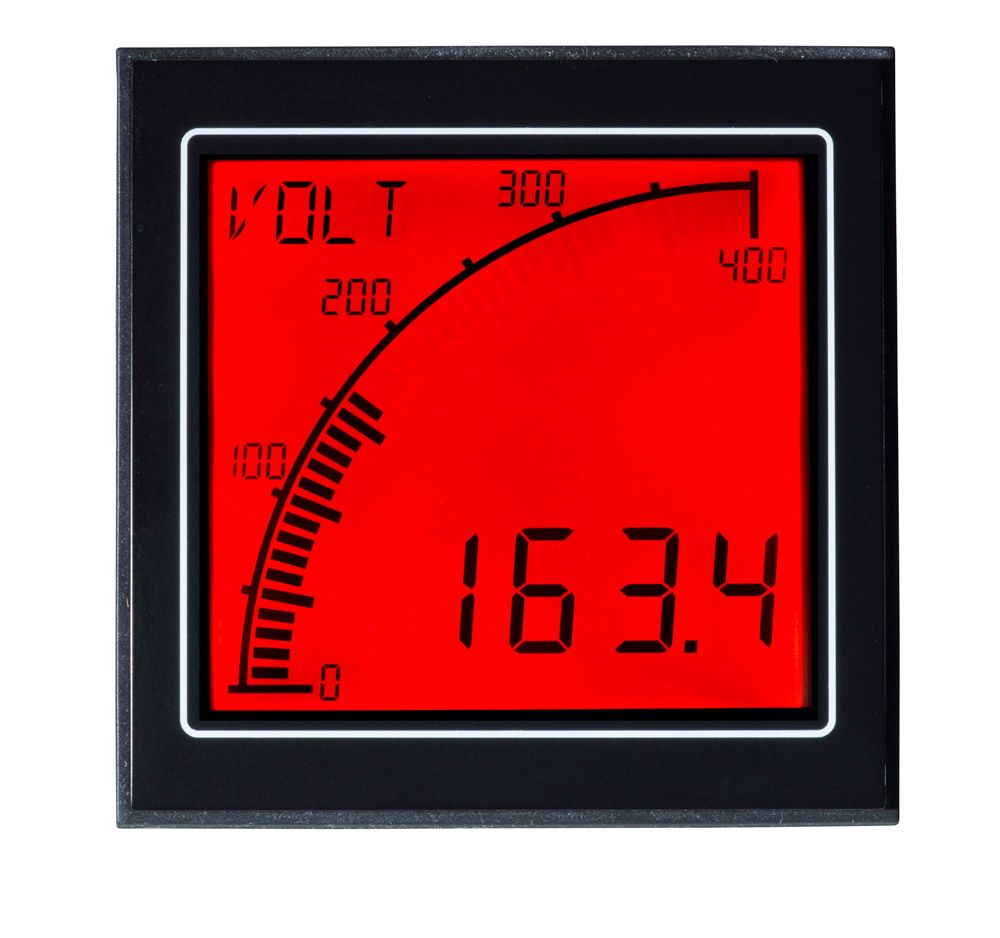

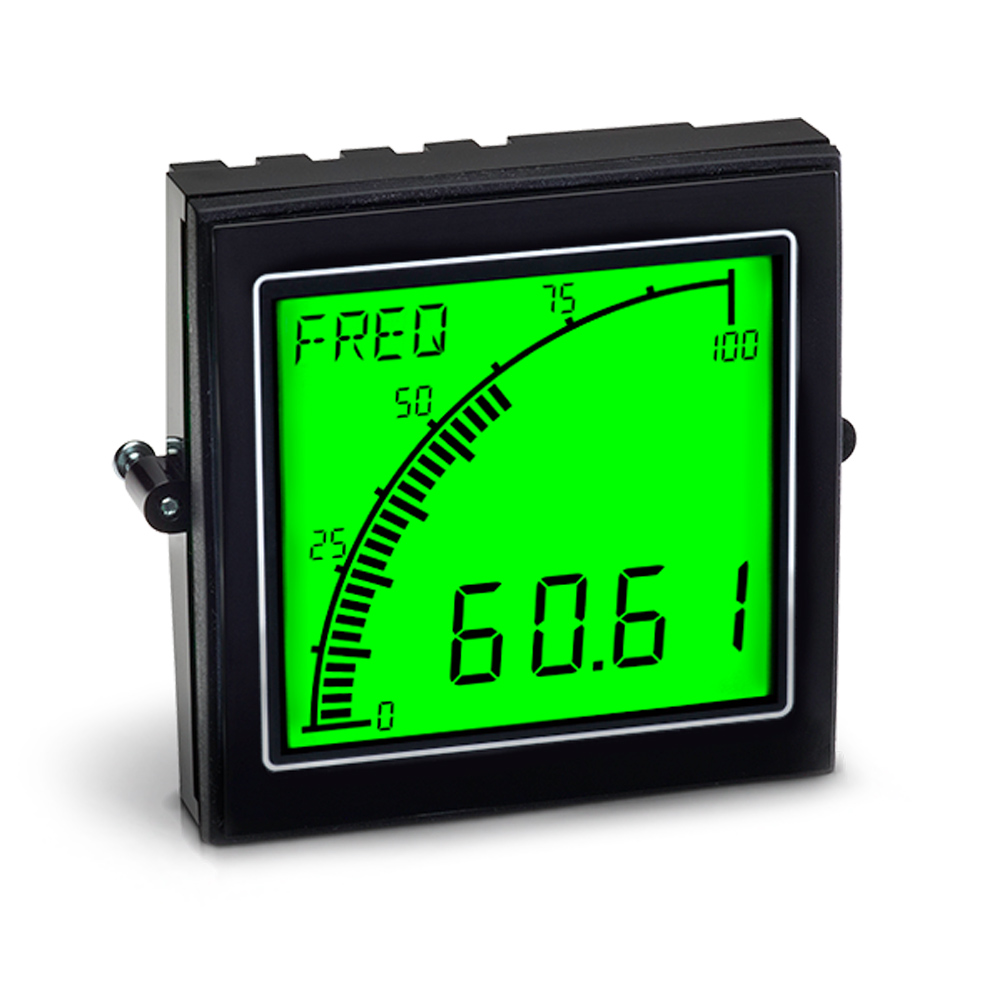

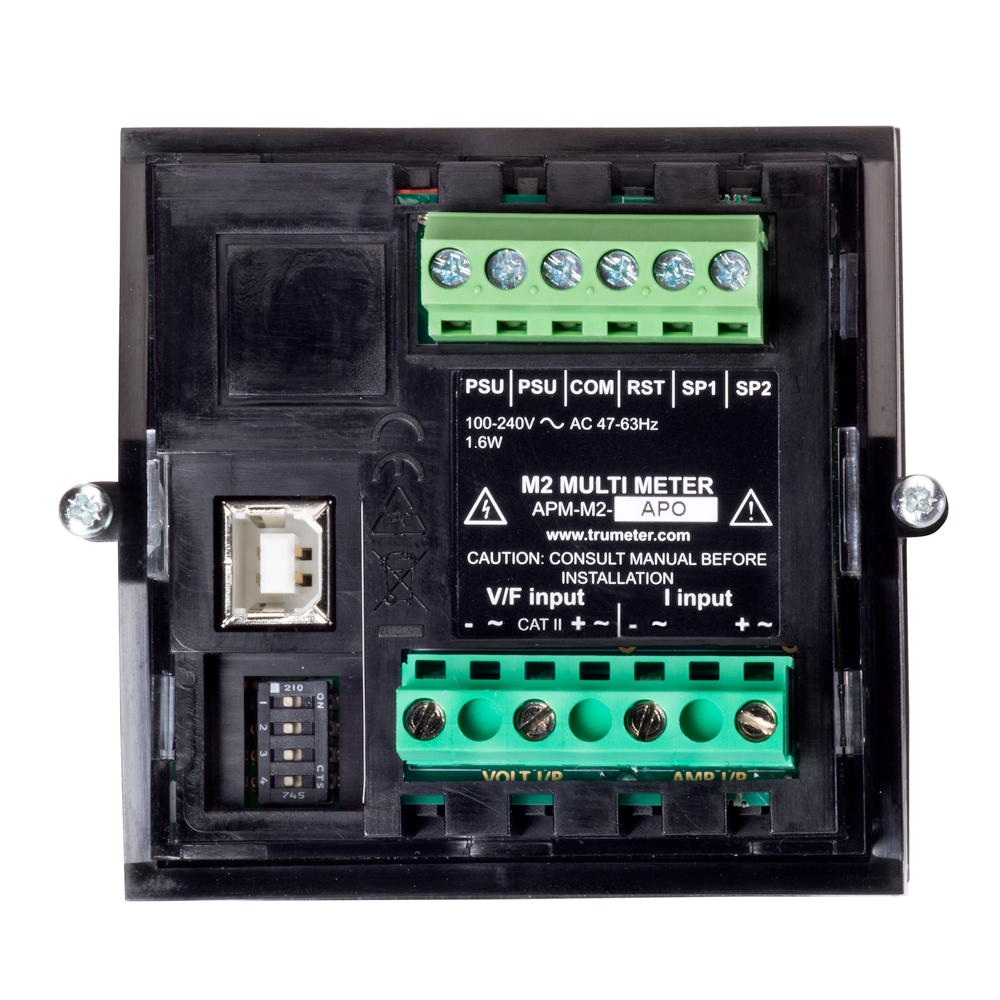

APM M2 3-in-1 AC Mains Powered Meter

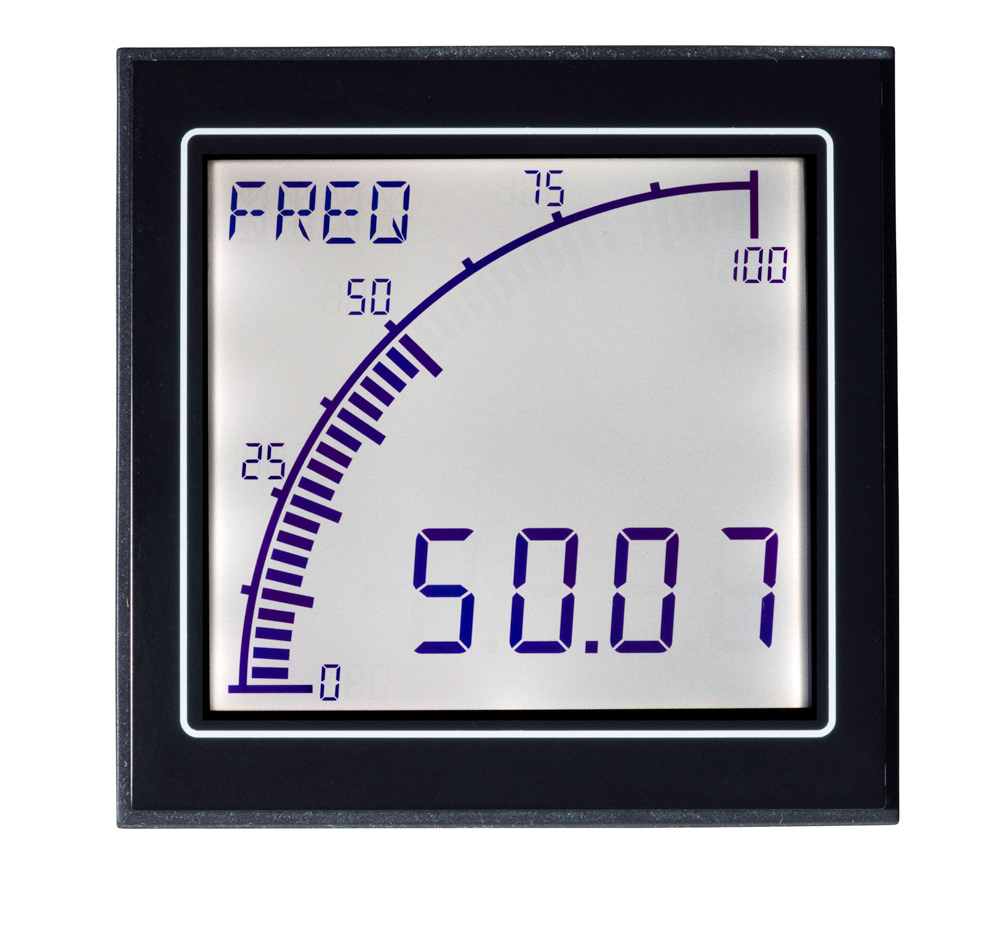

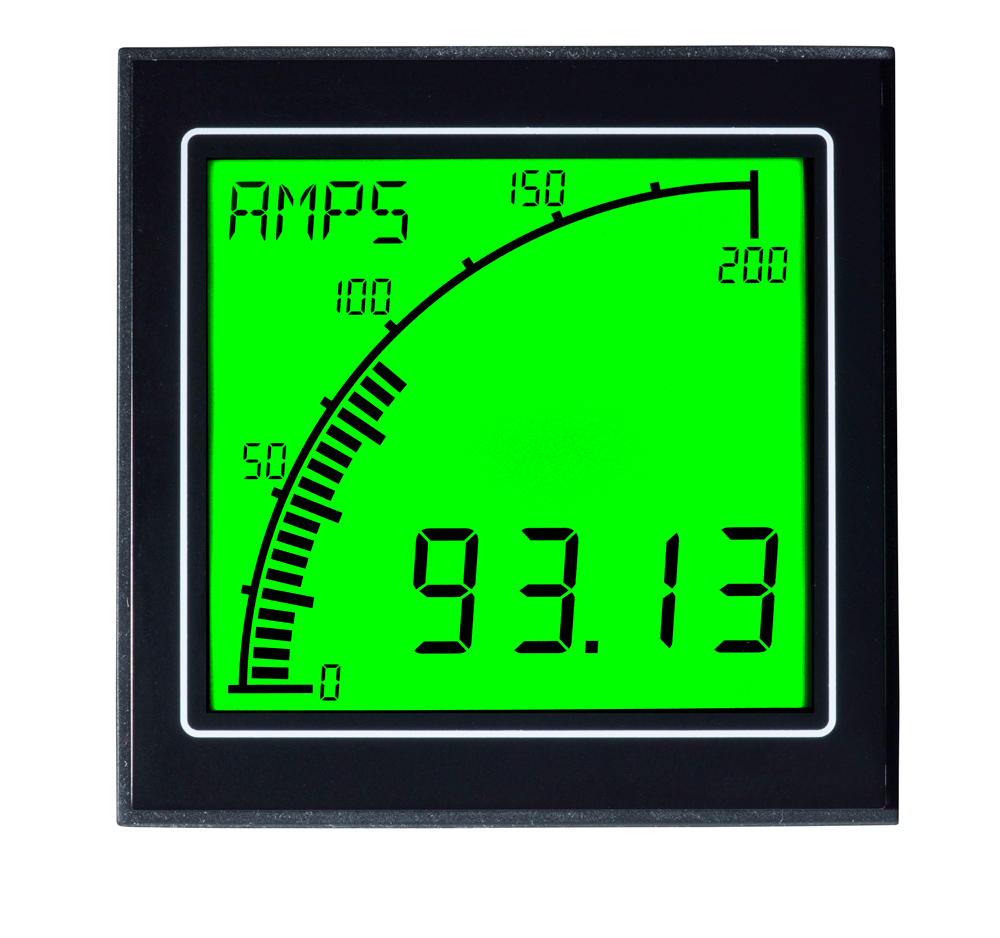

3-in1 for measuring volts, amps or frequency

The M2 is our mains powered APM. 3 meters in 1, it can be configured to measure amps, voltage or frequency via the APM software and is an ideal panel meter for a range of applications such as switchgear and power control centers.


  • Mains powered 100-240VAC - no additional power supply needed.

  • User configurable to measure voltage, current or frequency via application.

  • User-programmable 40 segment bar graph scale

  • Alarms to immediately alert operators when a parameter is out of range.

  • 4 character messaging area displays custom messages, alarms and annunciators.

  • Interface to other equipment using digital and analog outputs.

    • Output 1: Digital (open collector) or Analog (4-20mA)

    • Output 2: Digital (open collector) or Analog (4-20mA)

  • Positive LCD for use in bright conditions.

  • Accuracy: 1%

  • Certifications: CE, RoHS, UL, NEMA Type 4 and 12

Datasheet

Specifications

Brand trumeter
Series APM
Model Meter

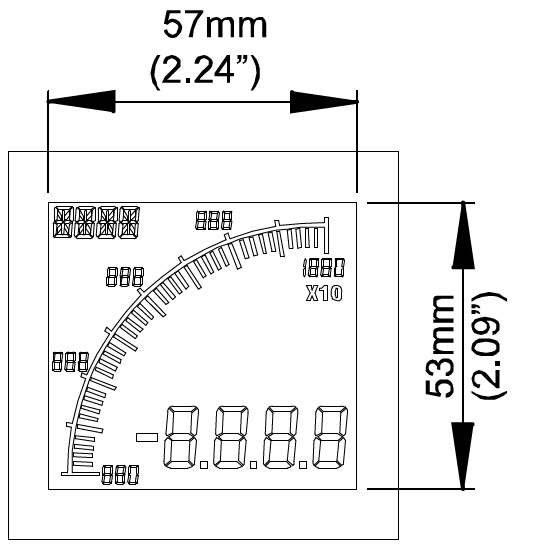

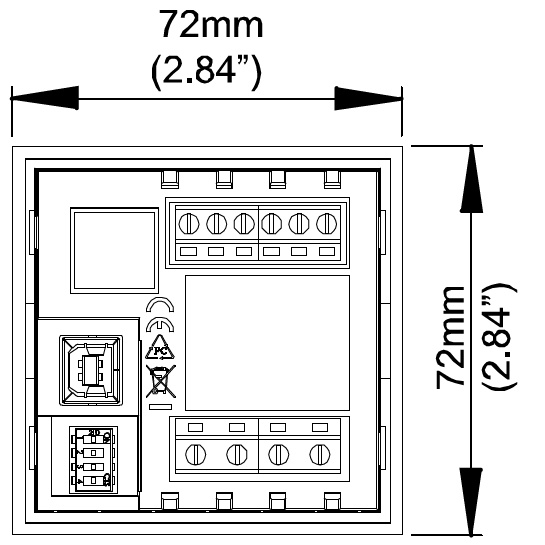

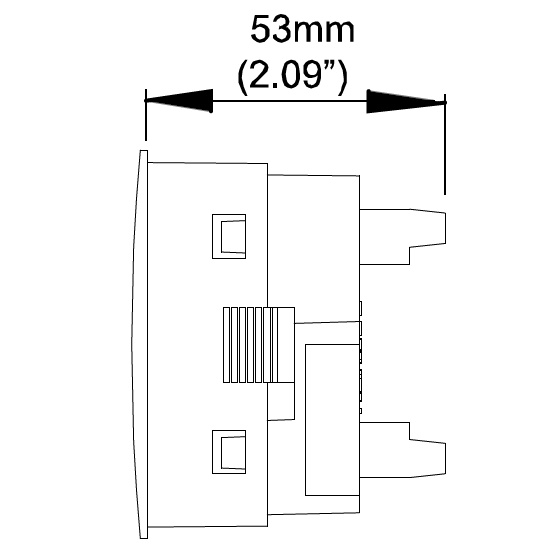

Form Factor 72x72mm 9/64 DIN
Input Range 0-600VAC, 0-600VDC, 0-5AAC, 0-5ADC, 2-400Hz
Input Frequency 50Hz, 60Hz, DC, 400Hz
Accuracy ±1% of Full Scale
Output 4-20mADC, Open Collector
Aux. Power Supply Switching ~100-240VAC, 50/60Hz
Tariff Code 8531.20.0000
ECCN EAR99
