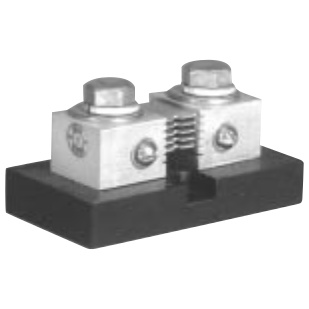

The LB series of shunts by Canadian Shunt are commercial versions of those designed by the military and controlled by MIL-S-61B and revised by MS91587. The differences between the commercial and military versions lie within the hardware and the testing that the shunts are subjected to. If ordered by the military designation the shunts will be compliant to the appropriate military specifications. The LB is offered with a 50 mV output and amperage ratings ranging from 170 amps through 600 amps. The LB series of shunts comply with Commercial Item Description AA55524.
Equivalent Military Shunt Standards:
- MS Part# 91587-7
- Mil-S-61B Type Designation: MSB501
- AN Part# N/A
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Product | |
|---|---|
| Brand | Canadian Shunt |
| Model | LB |
| Input Range | 0-500A |
| Output | 0-50mV |
| Tariff Code | 8533.29.0000 |
| ECCN | EAR99 |
| Accuracy | 0.25% Class |
| Current Shunt | |
|---|---|
| Shunt Resistance | 100 µΩ (0.0001 Ohms) |
