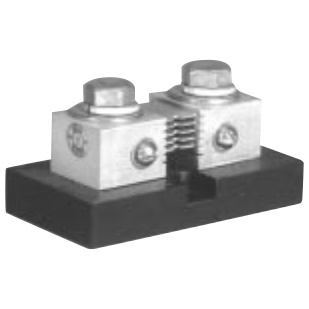

LB-300-50

Model LB 300 Ampere 50 Millivolt Shunt, Canadian Shunt, AA55524/2-004

$ 35.56 35.56 USD $ 35.56

$ 35.56

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Shunt Resistance

This combination does not exist.

The LB series of shunts by Canadian Shunt are commercial versions of those designed by the military and controlled by MIL-S-61B and revised by MS91587. The differences between the commercial and military versions lie within the hardware and the testing that the shunts are subjected to. If ordered by the military designation the shunts will be compliant to the appropriate military specifications. The LB is offered with a 50 mV output and amperage ratings ranging from 170 amps through 600 amps. The LB series of shunts comply with Commercial Item Description AA55524.

Equivalent Military Shunt Standards:

  • MS Part# 91587-4
  • Mil-S-61B Type Designation: MSB301
  • AN Part# AN3200-300


Specifications

Product
Brand Canadian Shunt
Model LB
Input Range 0-300A
Output 0-50mV
Tariff Code 8533.29.0000
ECCN EAR99
Current Shunt
Shunt Resistance 166.66 µΩ (0.00016666 Ohms)
