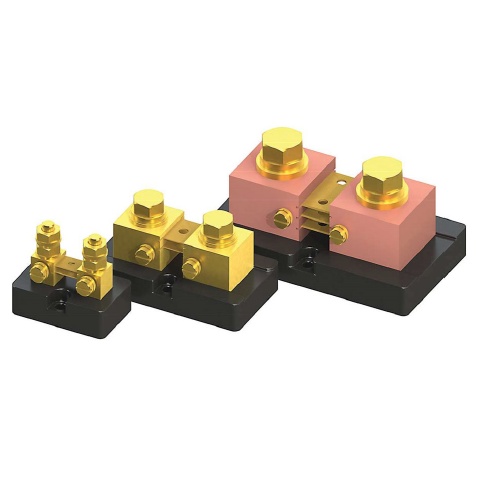

Model TM 100 Ampere 50 Millivolt Shunt, Crompton, AA55524/1-009

37.00 37.0 USD 37.00

37.00

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Output
  • Tariff Code
  • ECCN
  • Shunt Resistance
  • Accuracy

This combination does not exist.

Shunts are separately mounted units used for extending measurement of currents beyond the available limits of self-contained DC ammeters.  Where possible, all shunts should be mounted on the grounded side of the circuit and must be mounted on the grounded side of circuits above 750 volts.  The millivolt drop of the shunt is adjusted at the factory to within +/-0.25%.  The resistance blades are made of manganin, having a negligible temperature coefficient and thermoelectric effect, therefore avoiding errors due to heating.

The TM series of shunts by Crompton are commercial versions of those designed by the military and controlled by MIL-S-61B and revised by MS91586. The differences between the commercial and military versions lie within the hardware and the testing that the shunts are subjected to.  The TM series is offered with a 50 mV output and amperage ratings ranging from 5 amps through 150 amps. The TM series of shunts comply with Commercial Item Description AA55524.

Equivalent Military Shunt Standards:

  • MS Part# 91586-6
  • Mil-S-61B Type Designation: MSA101
  • AN Part# Unknown

Note: For continuous operation, it is recommended that shunts not run at more than two thirds (2/3) the rated current under normal conditions of use as per AIEEE standards.

Specifications

Product
Brand Crompton
Model TM
Input Range 0-100A
Output 0-50mV
Tariff Code 8533.29.0090
ECCN EAR99
Accuracy 0.25% Class
Current Shunt
Shunt Resistance 500 µΩ (0.0005 Ohms)
