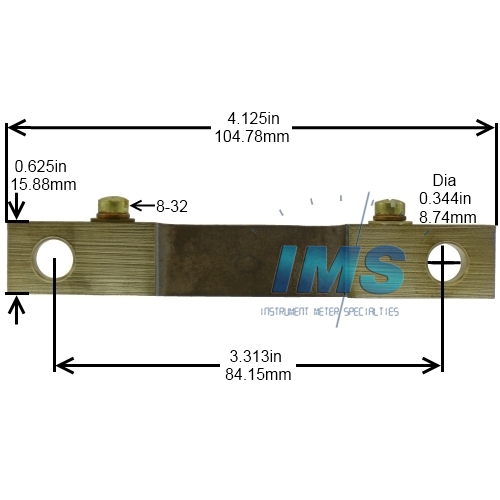

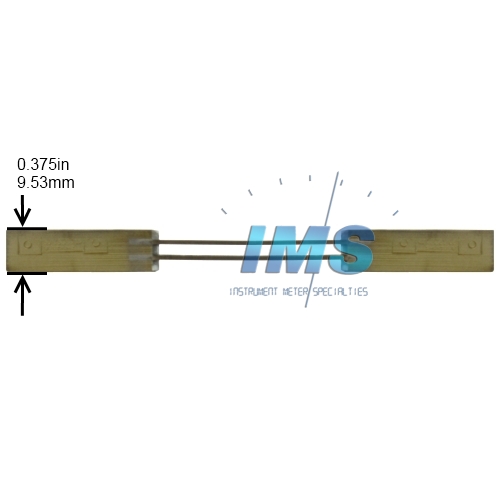

Available in ratings from 15 through 700 amps in both 50 and 100Mv outputs, these small shunts are usually bolted directly to a bus bar of suitable size.
Note:
For continuous operation, it is recommended that shunts not run at more than two thirds (2/3) the rated current under normal conditions of use as per AIEEE standards.
Specifications
| Product | |
|---|---|
| Brand | Empro |
| Model | A |
| Input Range | 0-100A |
| Output | 0-50mV |
| Tariff Code | 8533.29.0000 |
| ECCN | EAR99 |
| Accuracy | 0.25% Class |
| Current Shunt | |
|---|---|
| Shunt Resistance | 500 µΩ (0.0005 Ohms) |
