8SHT-501 ITI

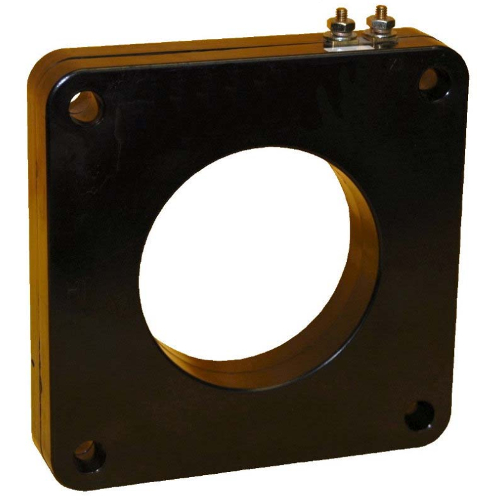

Model 8SHT 500:5A Ratio CT, 35VA, 3.25" Window, ITI

158.23 158.23 USD 158.23

158.23

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Window
  • CT Secondary Winding Resistance
  • Burden VA Max.
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

APPLICATION:
  • Metering.
FREQUENCY:
  • 50-400 Hz.
INSULATION LEVEL:
  • 600 Volts, 10 kV BIL full wave.

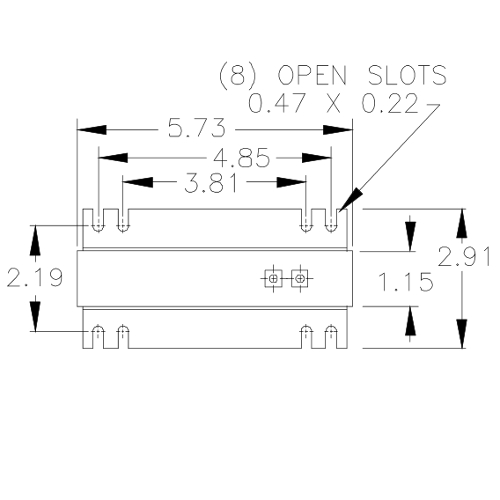

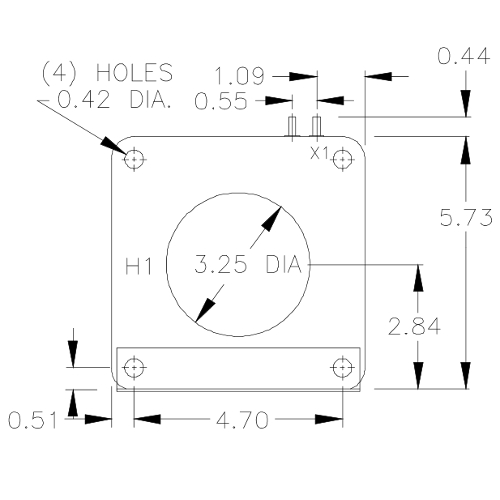

Terminal are brass studs No. 8-32 with one
flatwasher, lockwasher and regular nut.
Flexible leads are UL 1015, 105°C, CSA approved,
#16 AWG, 24" long. Non-standard, lead length
can be specified.
Model 8SHT also available as 8SHL with leads.
Order mounting bracket kit 0221B00183
separately for model 8SHT.
Order bus bar mounting kit 0221A26074
separately, factory installed.
Approximate weight 2.5 lbs.

Specifications

Brand Instrument Transformers Inc
Model 8
Input Range 0-500AAC
Input Frequency 60Hz
Accuracy 1% Class, 0.3 B0.1, 0.3 B0.2, 0.6 B0.5, 0.6 B0.9, 1.2 B1.8
Output 0-5AAC
CT Ratio 500:5A
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 1.5 at 55°C amb.
CT Window 3.25" Diameter
CT Secondary Winding Resistance 0.102Ω (102mΩ) @ 75°C
Burden VA Max. 35.0VA
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
