8SHT-252 ITI

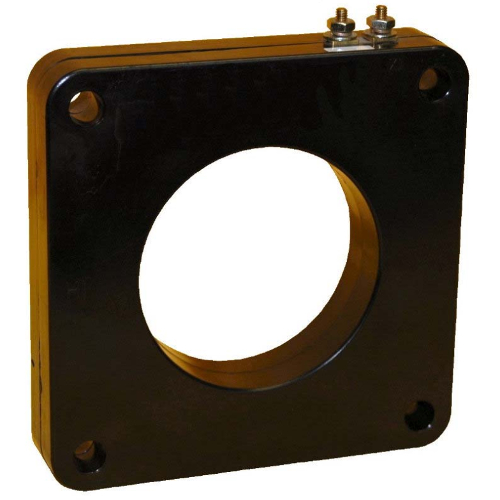

Model 8SHT 2500:5A Ratio CT, 50VA, 3.25" Window, ITI

$ 239.14 239.14000000000001 USD $ 239.14

$ 239.14

Brand
Model
Input Range
Input Frequency
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Accuracy
Output
Tariff Code
ECCN
Insulation Level
CT Burden VA Max.
CT Continuous Thermal Rating Factor
CT Continuous Thermal Rating Factor
CT Ratio
CT Secondary Winding Resistance
CT Window

This combination does not exist.

Add to cart

APPLICATION:

Metering.

FREQUENCY:

50-400 Hz.

INSULATION LEVEL:

600 Volts, 10 kV BIL full wave.

Terminal are brass studs No. 8-32 with one
flatwasher, lockwasher and regular nut.
Flexible leads are UL 1015, 105°C, CSA approved,
#16 AWG, 24" long. Non-standard, lead length
can be specified.
Model 8SHT also available as 8SHL with leads.
Order mounting bracket kit 0221B00183
separately for model 8SHT.
Order bus bar mounting kit 0221A26074
separately, factory installed.
Approximate weight 2.5 lbs.

Specifications

Product
Brand	Instrument Transformers Inc
Model	8
Input Range	0-2500AAC
Input Frequency	60Hz
Accuracy	1% Class, 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output	0-5AAC
Tariff Code	8504.31.4035
ECCN	EAR99
Insulation Level	600V, 10kV BIL full wave

Current Transformers
CT Burden VA Max.	50.0VA
CT Continuous Thermal Rating Factor	1.0 at 30°C amb., 0.8 at 55°C amb.
CT Ratio	2,500:5A
CT Secondary Winding Resistance	0.438Ω (438mΩ) @ 75°C
CT Window	3.25" Diameter
