8SHT-202 ITI

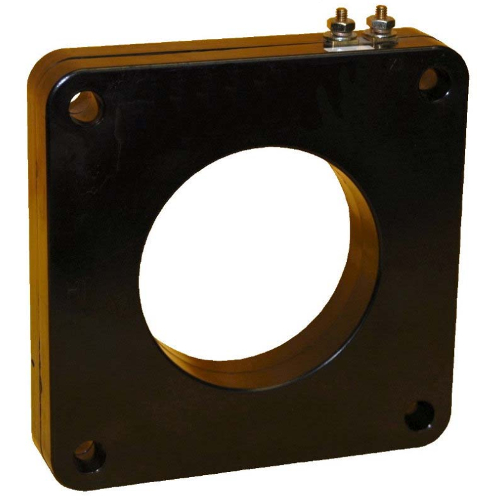

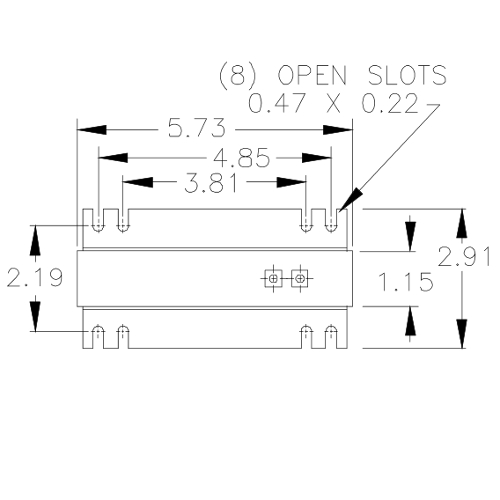

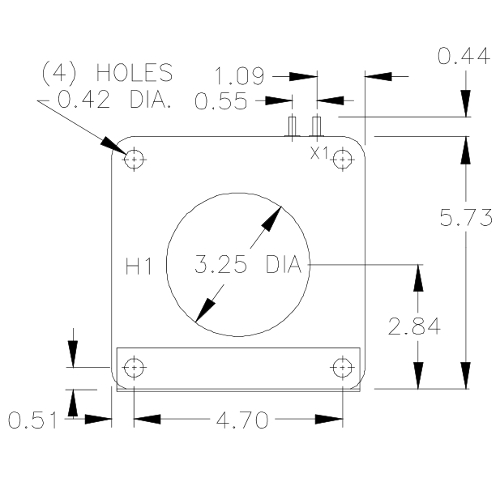

Model 8SHT 2000:5A Ratio CT, 120VA, 3.25" Window, ITI
APPLICATION:
- Metering.
FREQUENCY:
- 50-400 Hz.
INSULATION LEVEL:
- 600 Volts, 10 kV BIL full wave.
Terminal are brass studs No. 8-32 with one
flatwasher, lockwasher and regular nut.
Flexible leads are UL 1015, 105°C, CSA approved,
#16 AWG, 24" long. Non-standard, lead length
can be specified.
Model 8SHT also available as 8SHL with leads.
Order mounting bracket kit 0221B00183
separately for model 8SHT.
Order bus bar mounting kit 0221A26074
separately, factory installed.
Approximate weight 2.5 lbs.
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 8 |
Input Range | 0-2000AAC |
Input Frequency | 60Hz |
Accuracy | 1% Class, 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
Output | 0-5AAC |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Burden VA Max. | 120.0VA |
CT Continuous Thermal Rating Factor | 1.0 at 30°C amb., 0.8 at 55°C amb. |
CT Ratio | 2,000:5A |
CT Secondary Winding Resistance | 0.422Ω (422mΩ) @ 75°C |
CT Window | 3.25" Diameter |
