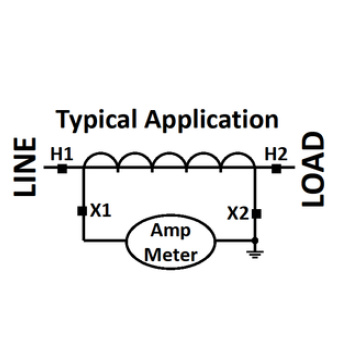

APPLICATION: Metering
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V. 10kV BIL full wave
STANDARDS:
- Products are manufactured in a plant whose quality management system is certified / registered as being in conformity with ISO 9001.
- CSA in Canada and the USA: File no. 223647
- Underwriter Recognized in Canada and the USA: File no. E228202
CONNECTIONS:
- Flexible leads available for all case configurations.
- Flexible leads are UL 1015 105°C, C.S.A. approved #16 AWG, 24" long standard length.
- Non-standard lengths are available upon request.
- Terminals are brass stud and female options with hardware available. (Note: Terminals are only available on the square case configuration.)
- Mounting bracket kit 59-0220 for the Model 8SHT or 8SHL are available
- Approximate weight: 2.5 lbs
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.

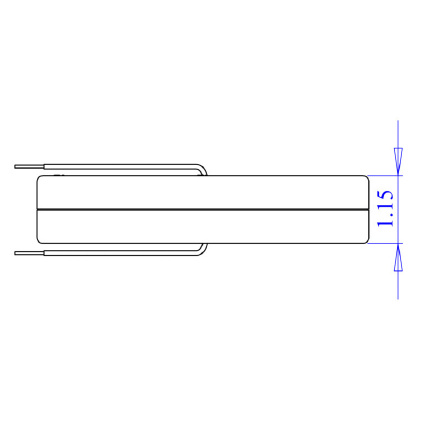

Specifications
| Product | |
|---|---|
| Brand | Crompton |
| Model | 8 |
| Input Range | 0-2500AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 50.0VA |
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb., 0.8 at 55°C amb. |
| CT Ratio | 2,500:5A |
| CT Secondary Winding Resistance | 0.438Ω (438mΩ) @ 75°C |

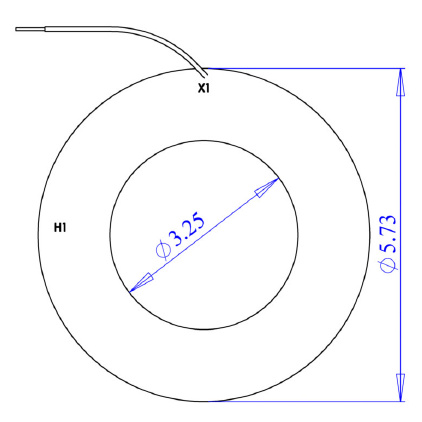

| CT Window | 3.25" Diameter |
