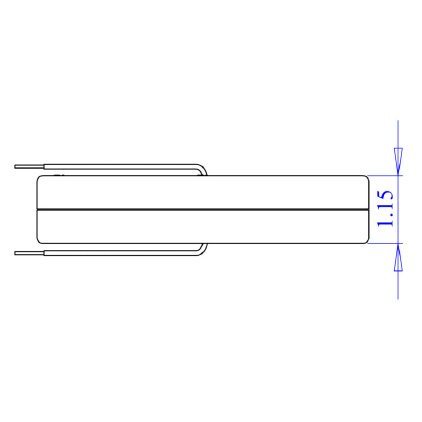

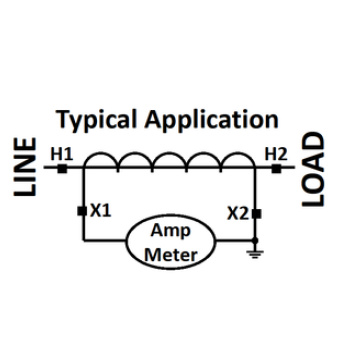

APPLICATION: Metering
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V. 10kV BIL full wave
STABDARDS: CSA 66.1-06, CSA 66.2-06, IEEE C 57.13, and UL 506
- Flexible leads available for all case configurations.
- Flexible leads are UL 1015 105°C, C.S.A. approved #16 AWG, 24" long standard length.
- Non-standard lengths are available upon request.
- Terminals are brass. Stud and Female options with hardware available. (Note: Terminals are only available on the square case configuration.)
- Mounting bracket kits for the Model 8SHT or 8SHL are available.
- Approximate weight: 3 lbs
Specifications
| Product | |
|---|---|
| Brand | Electromagnetic Industries |
| Model | 8 |
| Input Range | 0-2000AAC |
| Input Frequency | 60Hz |
| Accuracy | 1% Class, 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8 |
| Output | 0-5AAC |
| Tariff Code | 8504.31.0000 |
| ECCN | EAR99 |
| Insulation Level | 600V, 10kV BIL full wave |
| Current Transformers | |
|---|---|
| CT Burden VA Max. | 120.0VA |
| CT Continuous Thermal Rating Factor | 1.0 at 30°C amb., 0.8 at 55°C amb. |
| CT Ratio | 2,000:5A |
| CT Secondary Winding Resistance | 0.422Ω (422mΩ) @ 75°C |

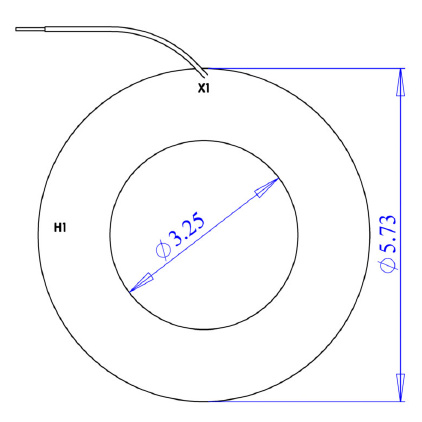

| CT Window | 3.25" Diameter |
