- APPLICATION: Relaying and metering.
- FREQUENCY: 50-400 Hz.
- INSULATION LEVEL: 0.6 kV, BIL 10 kV full wave.
- CONTINUOUS THERMAL CURRENT RATING FACTOR:
- 50:5 to 1200:5 - 2.0 at 30°C amb., 1.5 at 55 C. amb.
- 1500:5 to 2500:5 - 1.5 at 30°C. amb., 1.33 at 55°C. amb.
- 3000:5 to 4000:5 - 1.33 at 30°C. amb., 1.0 at 55°C. amb.
Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher, accessible from either side.
Approximate weight 58 lbs.
Excitation data available upon request.

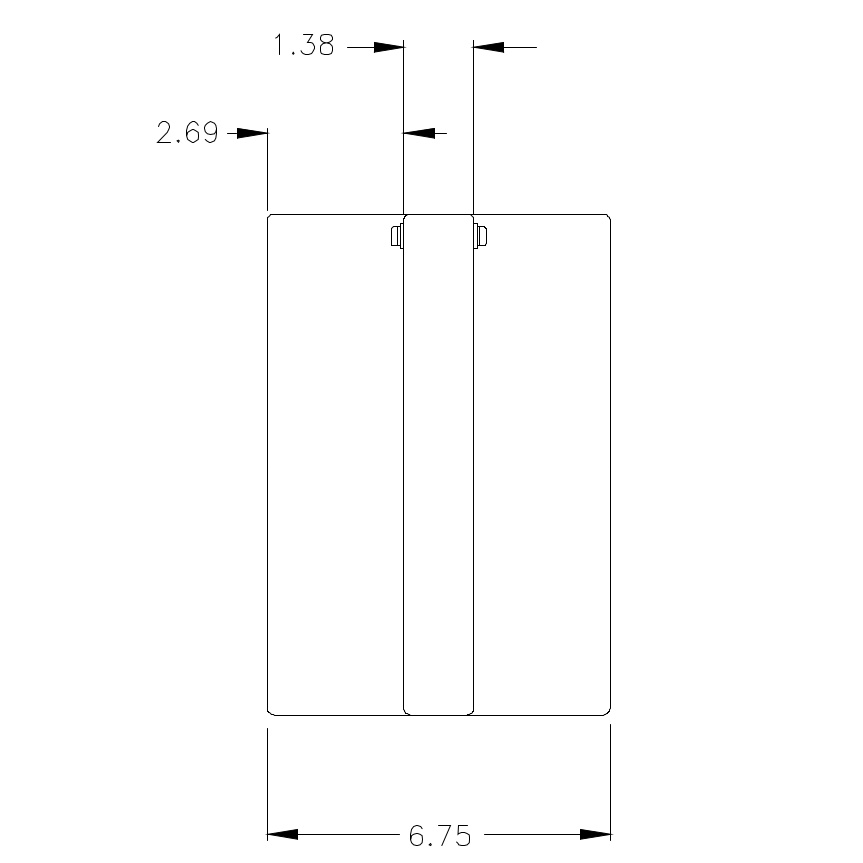

Specifications

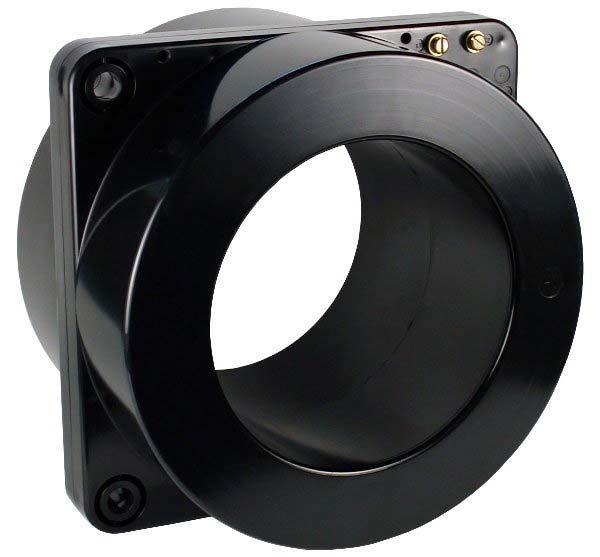

| Brand | Instrument Transformers Inc |
| Model | 785 |
| Input Range | 0-300AAC |
| Output | 0-5AAC |

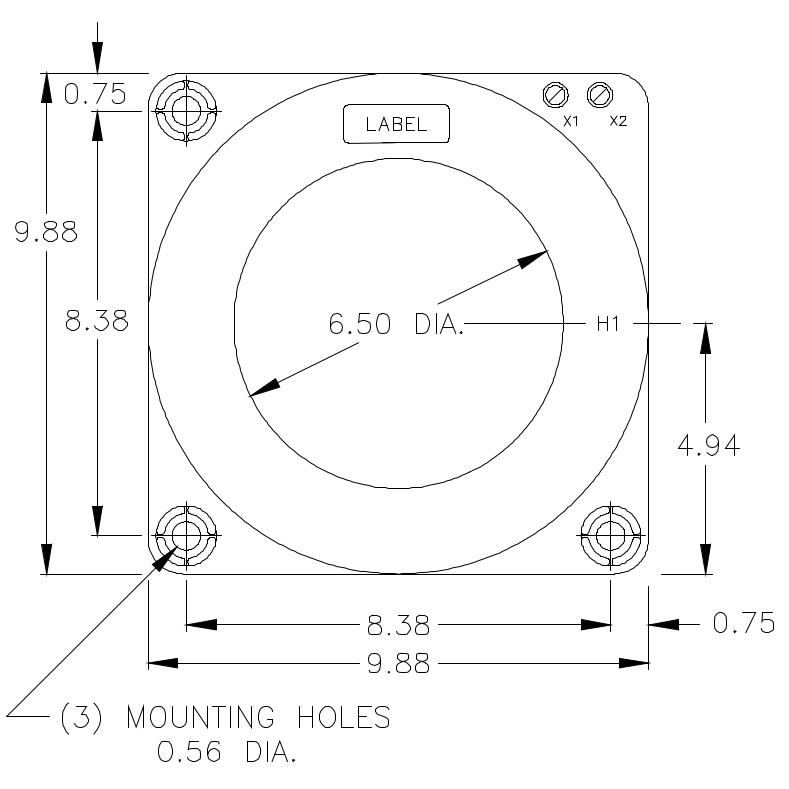

| CT Window | 6.50" Diameter |
| CT Relay Class | C100 |
| Tariff Code | 8504.31.4035 |
| ECCN | EAR99 |
