785-152 ITI

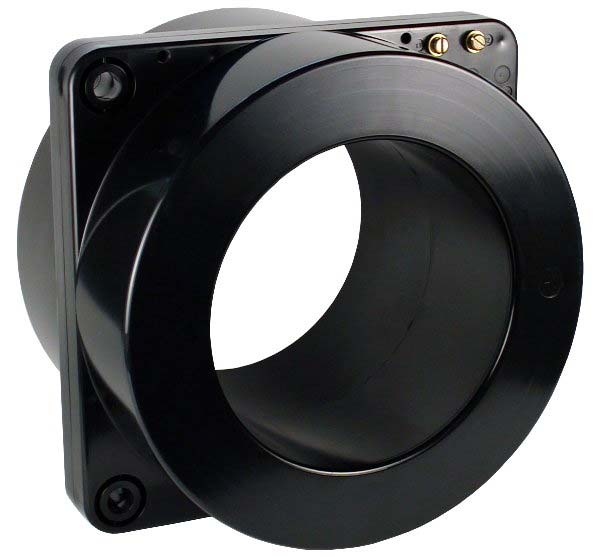

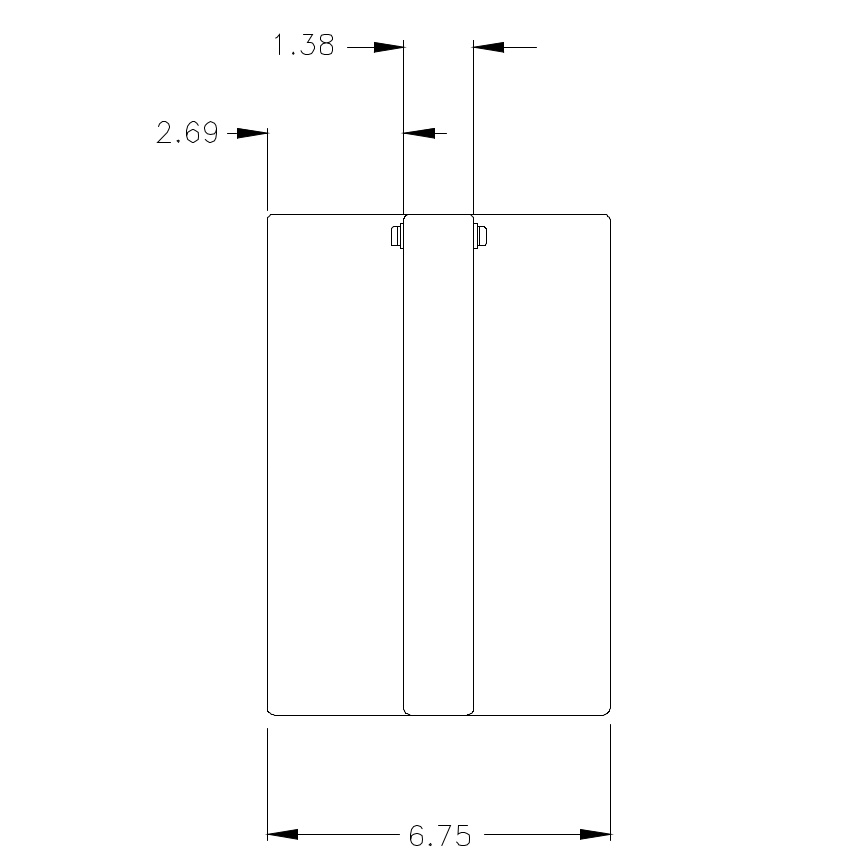

Model 785 1500:5A Ratio CT, C400 Relay Class, 6.5" Window, ITI

1,546.33 1546.33 USD 1,546.33

1,546.33

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • CT Ratio
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Relay Class
  • CT Window
  • CT Secondary Winding Resistance
  • Insulation Level
  • Tariff Code
  • ECCN

This combination does not exist.

  • APPLICATION: Relaying and metering.
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 0.6 kV, BIL 10 kV full wave.
  • CONTINUOUS THERMAL CURRENT RATING FACTOR:
    • 50:5 to 1200:5 - 2.0 at 30°C amb., 1.5 at 55 C. amb.
    • 1500:5 to 2500:5 - 1.5 at 30°C. amb., 1.33 at 55°C. amb.
    • 3000:5 to 4000:5 - 1.33 at 30°C. amb., 1.0 at 55°C. amb.

Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher, accessible from either side.
Approximate weight 58 lbs.
Excitation data available upon request.

Specifications

Brand Instrument Transformers Inc
Model 785
Input Range 0-1500AAC
Input Frequency 60Hz
Accuracy 0.3 B0.1, 0.3 B0.2, 0.3 B0.5, 0.3 B0.9, 0.3 B1.8
Output 0-5AAC
CT Ratio 1,500:5A
CT Continuous Thermal Rating Factor 1.5 at 30°C amb., 1.33 at 55°C amb.
CT Relay Class C400

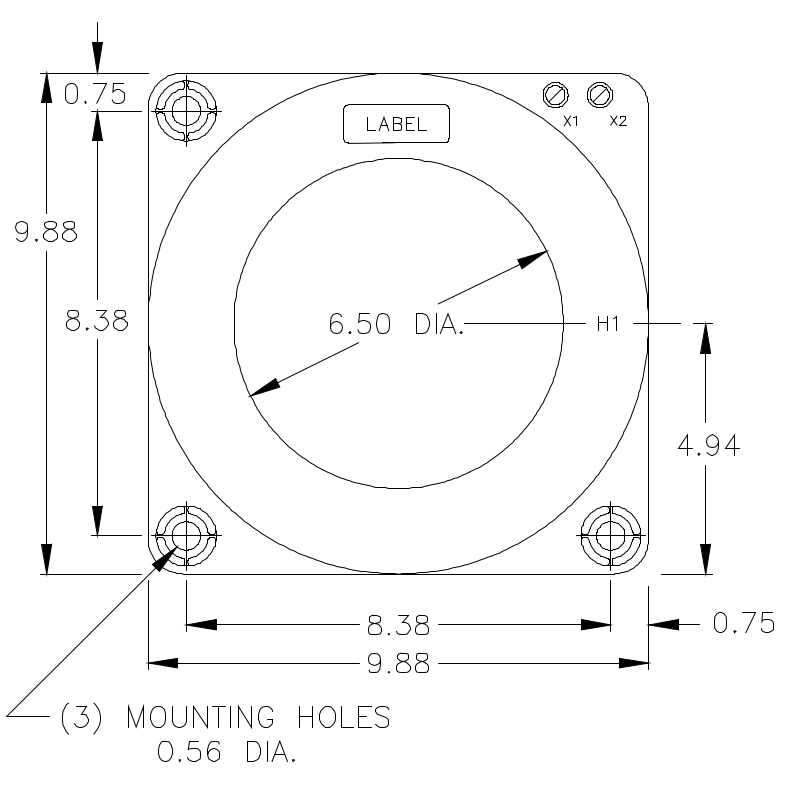

CT Window 6.50" Diameter
CT Secondary Winding Resistance 1.100Ω (1100mΩ) @ 75°C
Insulation Level 600V, 10kV BIL full wave
Tariff Code 8504.31.4035
ECCN EAR99
