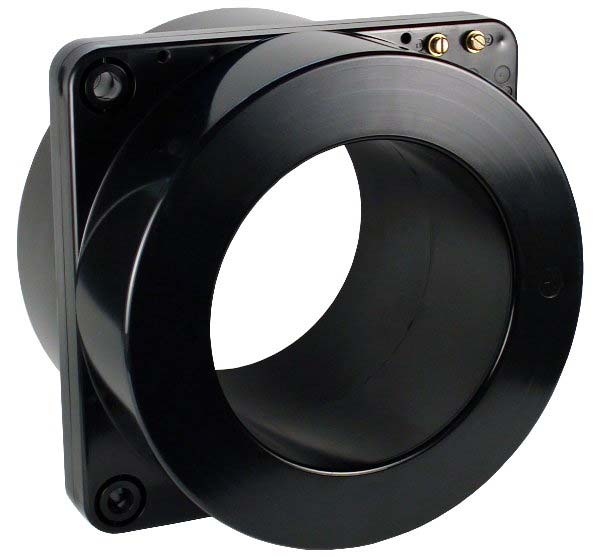

Model 785 100:5A Ratio CT, C20 Relay Class, 6.5" Window, ITI

$ 1,498.32 1498.32 USD $ 1,498.32

$ 1,498.32

Not Available For Sale

  • Brand
  • Model
  • Input Range
  • Input Frequency
  • Accuracy
  • Accuracy
  • Accuracy
  • Output
  • Tariff Code
  • ECCN
  • Insulation Level
  • CT Continuous Thermal Rating Factor
  • CT Continuous Thermal Rating Factor
  • CT Ratio
  • CT Relay Class
  • CT Secondary Winding Resistance
  • CT Window

This combination does not exist.

Contact Us

​

  • APPLICATION: Relaying and metering.
  • FREQUENCY: 50-400 Hz.
  • INSULATION LEVEL: 0.6 kV, BIL 10 kV full wave.
  • CONTINUOUS THERMAL CURRENT RATING FACTOR:
    • 50:5 to 1200:5 - 2.0 at 30°C amb., 1.5 at 55 C. amb.
    • 1500:5 to 2500:5 - 1.5 at 30°C. amb., 1.33 at 55°C. amb.
    • 3000:5 to 4000:5 - 1.33 at 30°C. amb., 1.0 at 55°C. amb.

Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher, accessible from either side.
Approximate weight 58 lbs.
Excitation data available upon request.

Specifications

Product
Brand Instrument Transformers Inc
Model 785
Input Range 0-100AAC
Input Frequency 60Hz
Accuracy 0.6 B0.1, 1.2 B0.2, 2.4 B0.5
Output 0-5AAC
Tariff Code 8504.31.4035
ECCN EAR99
Insulation Level 600V, 10kV BIL full wave
Current Transformers
CT Continuous Thermal Rating Factor 2.0 at 30°C amb., 1.5 at 55°C amb.
CT Ratio 100:5A
CT Relay Class C20
CT Secondary Winding Resistance 0.057Ω (57mΩ) @ 75°C
CT Window 6.50" Diameter
