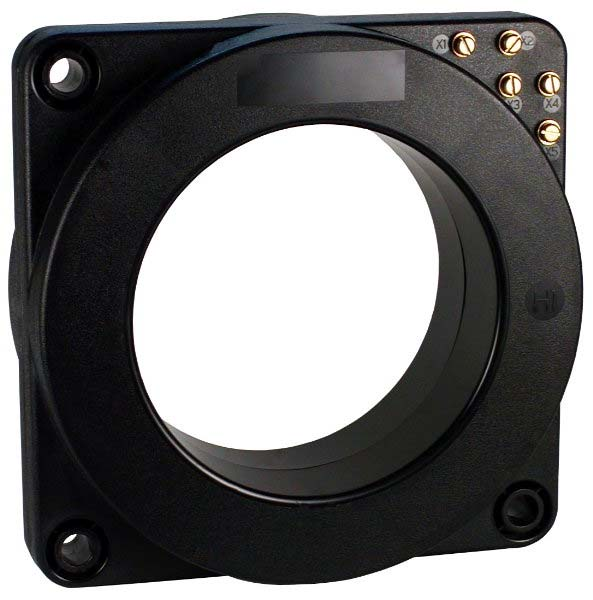

781-601MR ITI
Model 781MR 600:5A 400:5A 150:5A 100:5A Multi Ratio CT, C100 Relay Class, 6.5" Window, ITI
APPLICATION: Relaying and metering
FREQUENCY: 50-400 Hz
INSULATION LEVEL: 600V, 10kV BIL full wave
- Secondary terminals are brass screws No. 10-32 with one flatwasher and lockwasher, accessible from either side.
- Excitation data available upon request.
- Approximate weight: 30 lbs.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
Product | |
---|---|
Brand | Instrument Transformers Inc |
Model | 781 |
Input Range | 0-600AAC |
Input Frequency | 60Hz |
Accuracy | 0.3 B0.5 |
Output | 0-5AAC |
Tariff Code | 8504.31.4035 |
ECCN | EAR99 |
Insulation Level | 600V, 10kV BIL full wave |
Current Transformers | |
---|---|
CT Continuous Thermal Rating Factor | 2.0 at 30°C amb., 1.5 at 55°C amb. |
CT Ratio | 600:5A, Multi-Ratio |
CT Relay Class | C100 |
CT Window | 6.50" Diameter |
